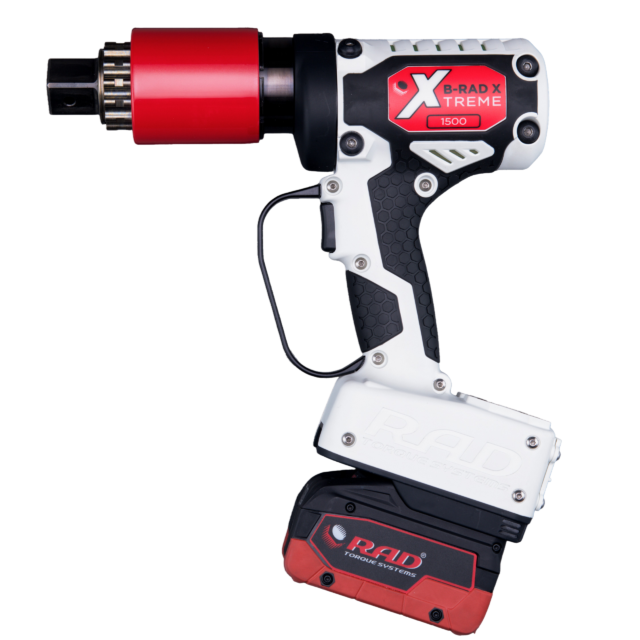

B-RAD X

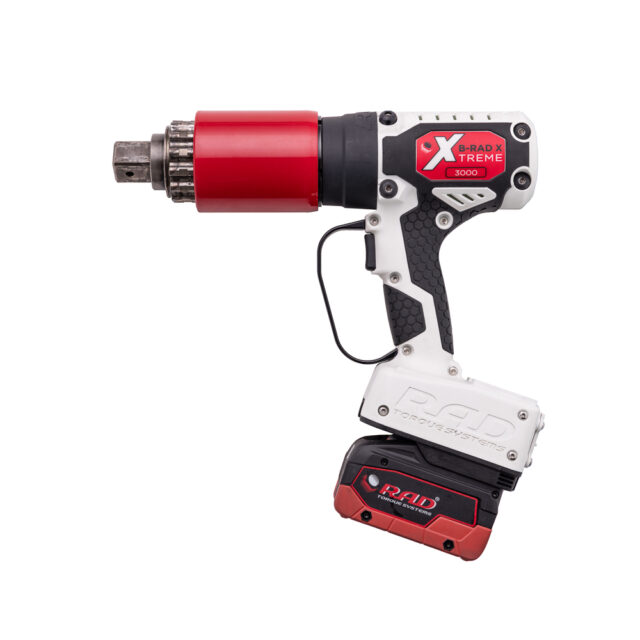

All-New! B-RAD Xtreme

Brushless DC motor for added durability and accuracy.
Redesigned anti-fatigue trigger switch.
Standard handguard for added operator protection.
Two-hand start option.
Latch lock to protect battery from falling from high heights.
4-button interface with high-contrast LED display provides feedback during operation.
Accuracy of 4% to target

Torque Range: 11,000 ft. lbs. (15,000 Nm)

Introducing the World’s Most Powerful Battery-Operated Torque Wrench

RAD Torque System is taking torque to the extreme with the all-new B-RAD X. The latest generation of our popular battery tool series, the B-RAD X is raising the bar for torque range capacity with a battery tool, maxing out at an impressive 11,000 ft. lbs./15,000 Nm – making the B-RAD X officially the most powerful battery-powered torque tool on the market.

Sales Sheet – Metric
Sales Sheet – Imperial

The B-RAD X is available in three different sizes:

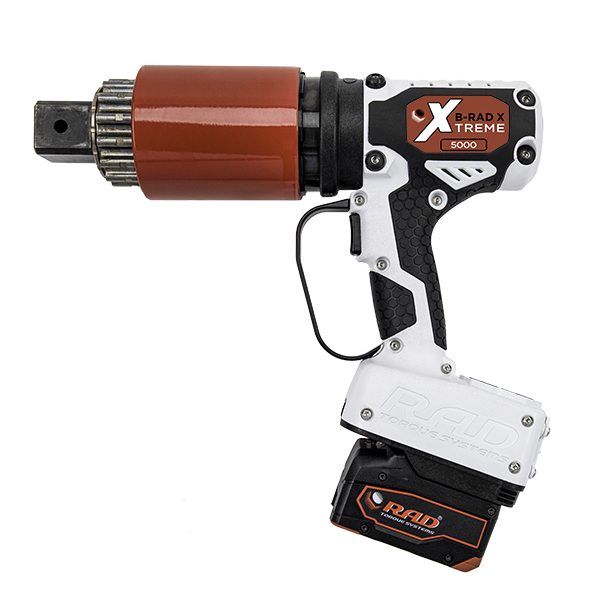

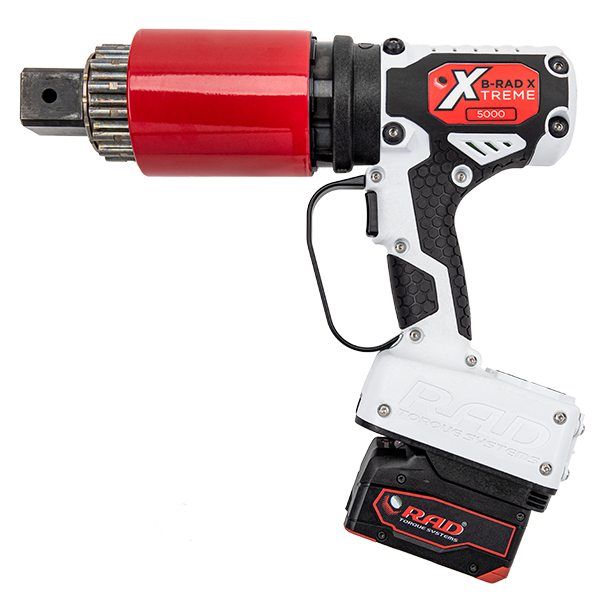

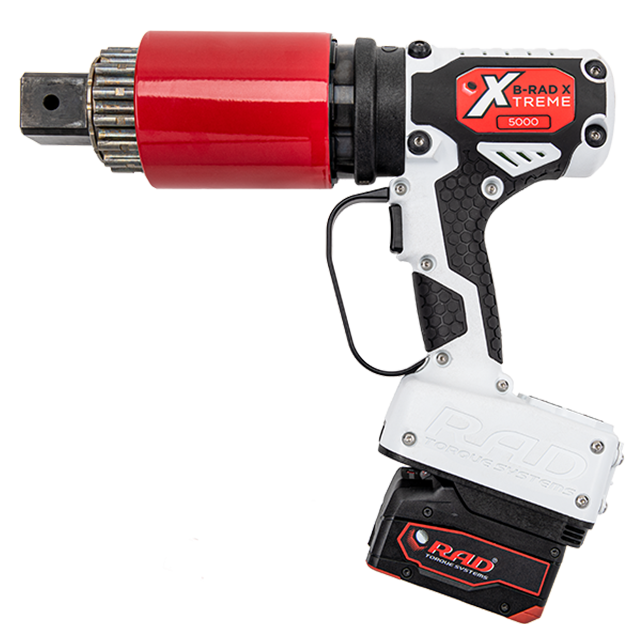

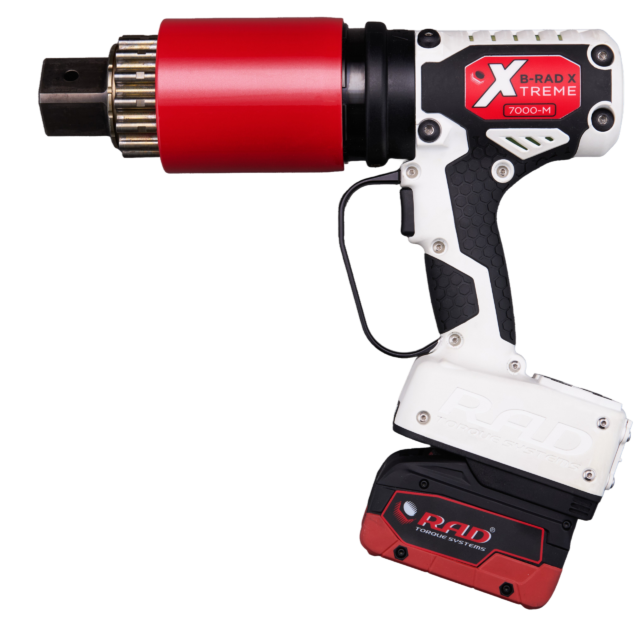

B-RAD X 5,000 ft. lbs. / 7,000 Nm

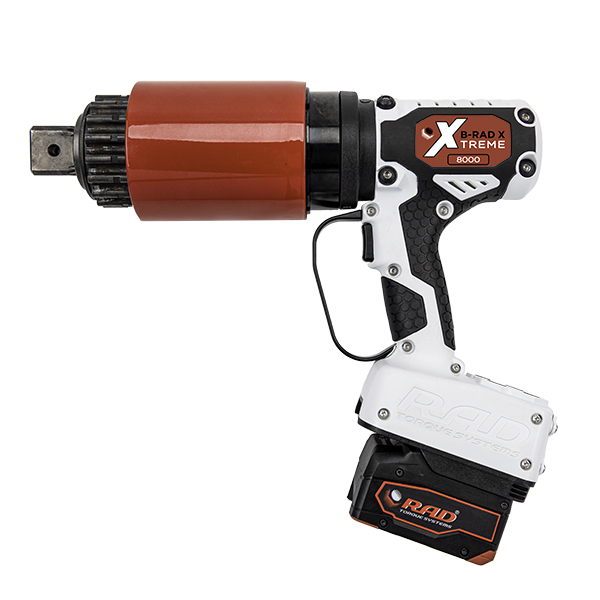

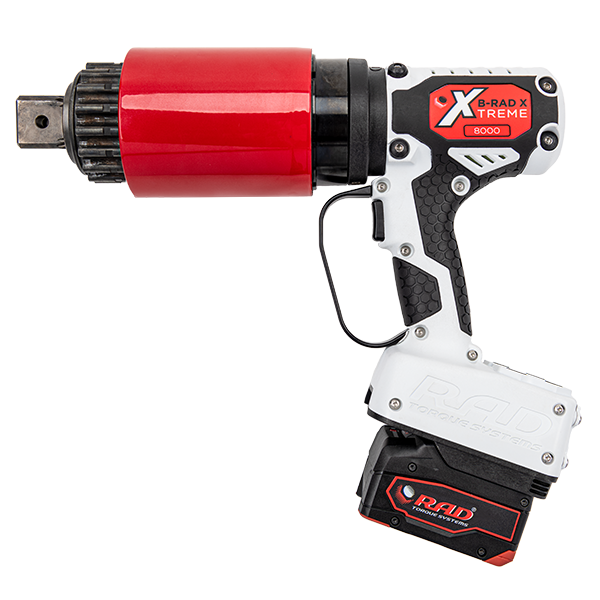

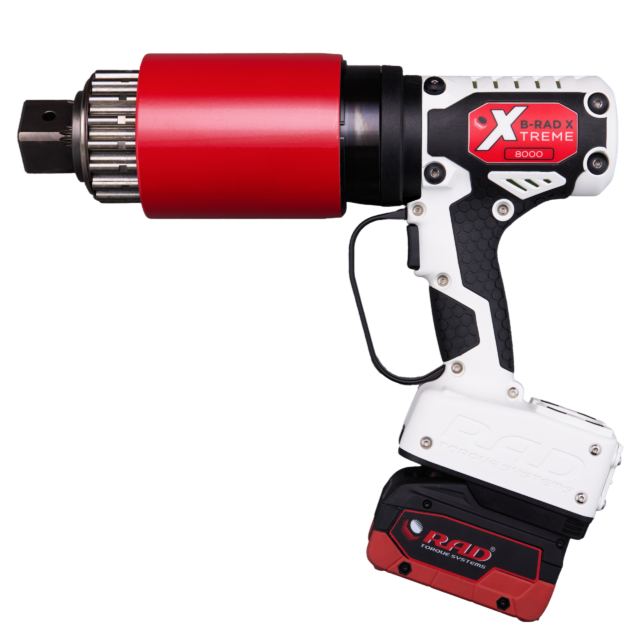

B-RAD X 8,000 ft. lbs. / 10K Nm

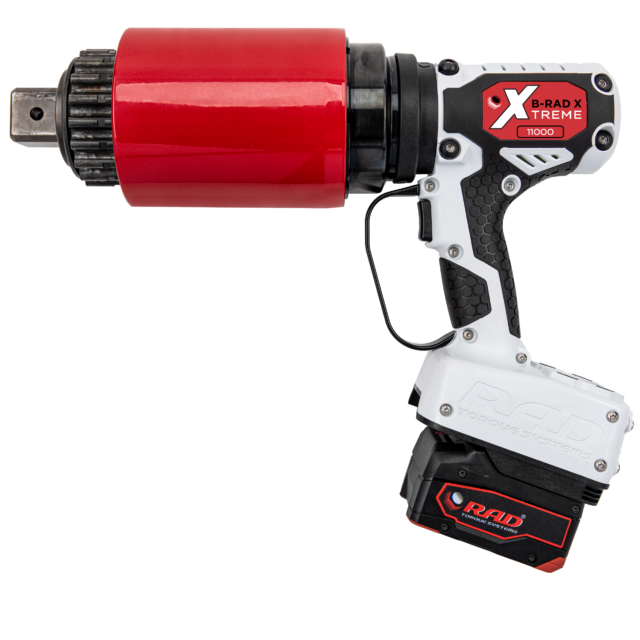

B-RAD X 11K ft. lbs. / 15K Nm

Building off RAD Torque’s patented and world-renowned gearbox technology, the B-RAD X captures attention with its sleek new white design and rubber grip, a new high-performance motor, and its various features.

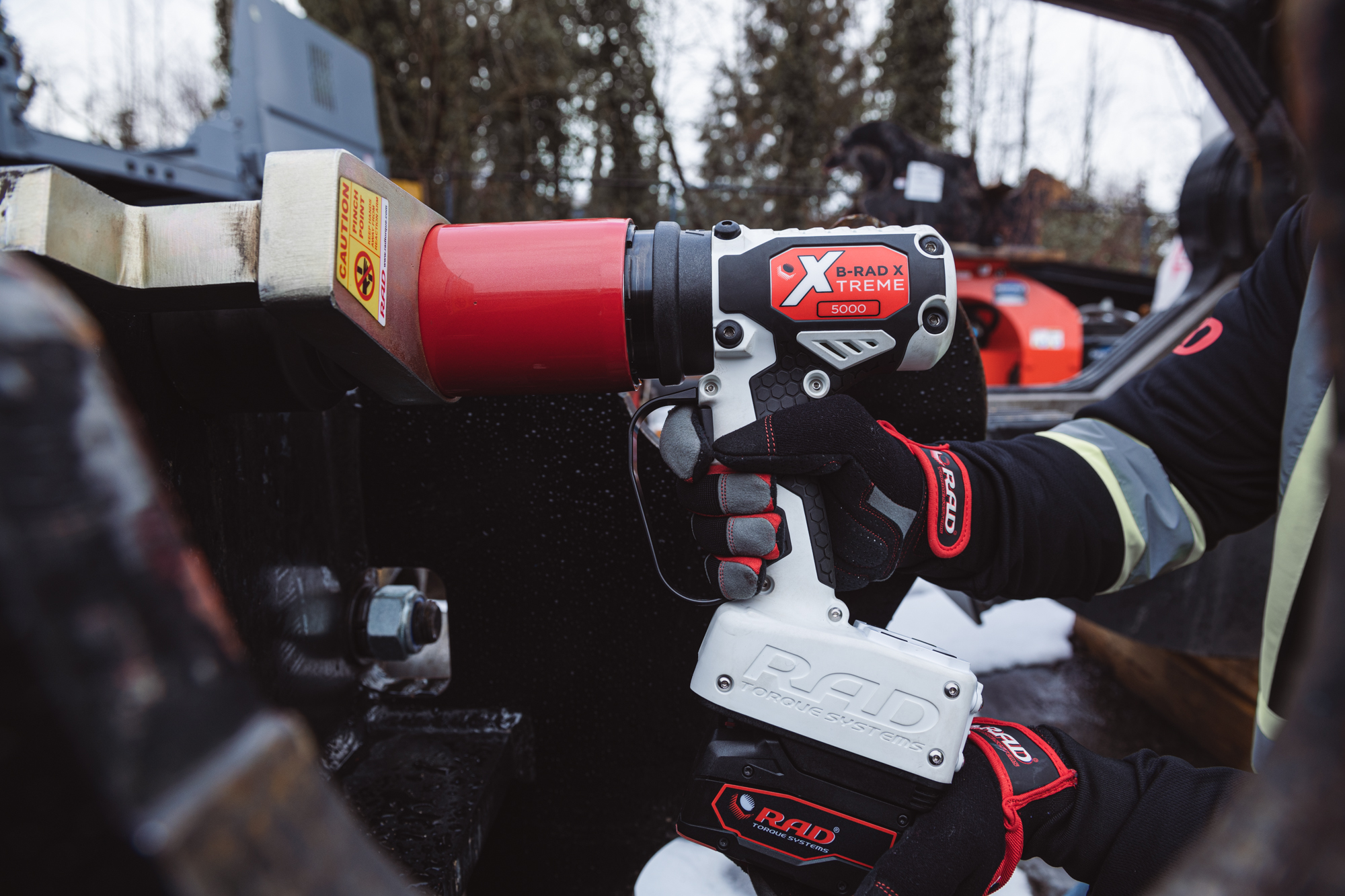

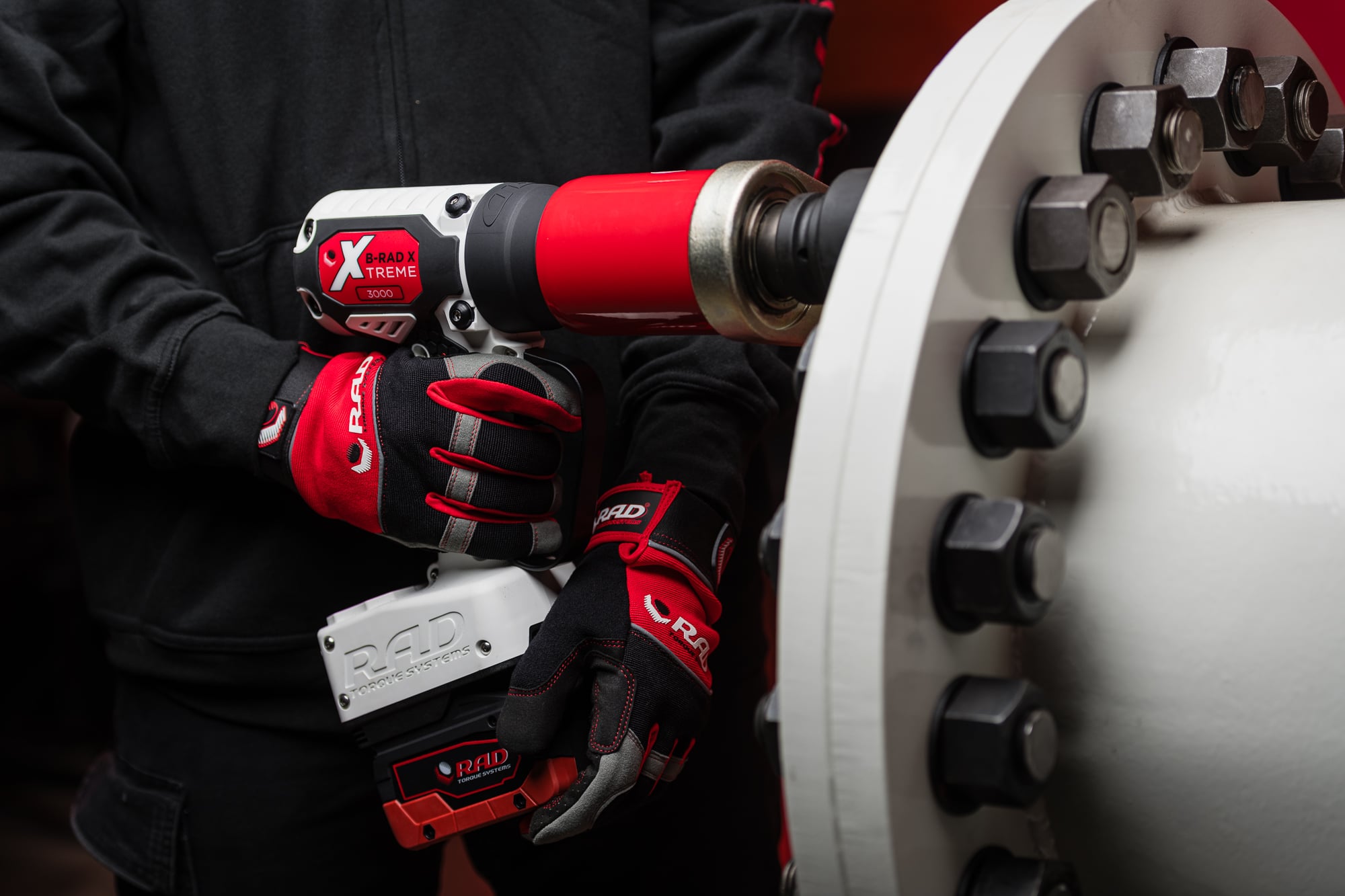

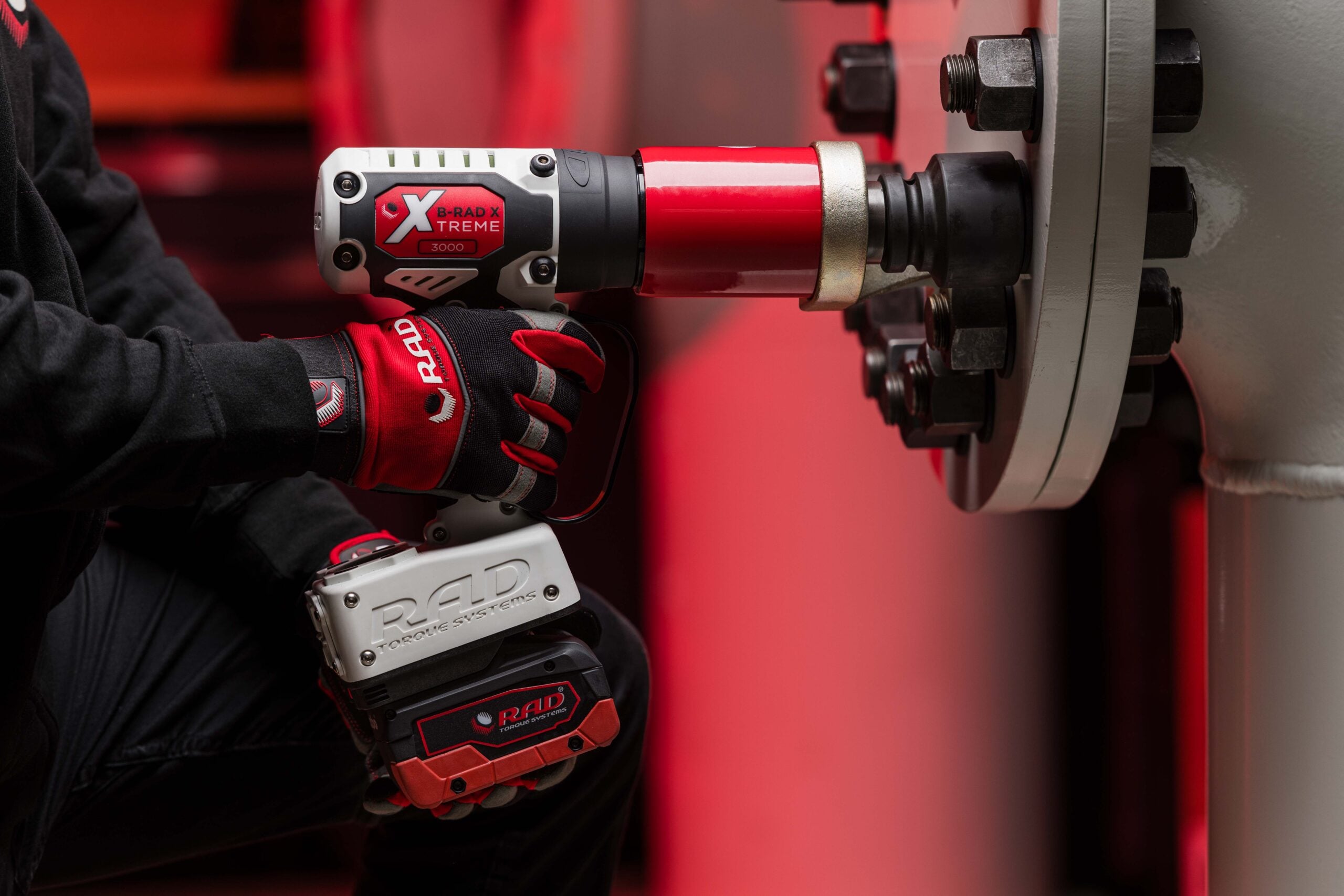

Fastening bolts in remote locations will now be easier for big industry as the cordless B-RAD X gives companies better mobility to torque and tension large bolts with less equipment to haul without compromising power or accuracy.

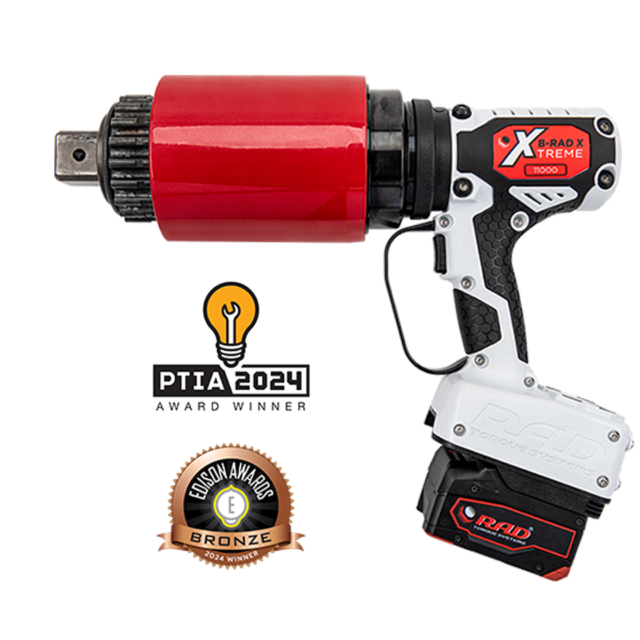

The B-RAD X has made its mark on an international platform – winning the 2024 Bronze Edison Award in the Commercial Technology: Engineering & Manufacturing Tools Category. Read more about this prestigious win HERE.

The B-RAD Xtreme has two patents pending in the U.S. One for mechanical technology and one for electronic technology.

B-RAD X MODEL CHART

Select Your Preferred Unit of Measurement for the Model Chart

Imperial Metric

Tool Model	Torque Range	RPM
B-RAD X 7000-M B-RAD X 5000	700-7000 Nm 500-5000 ft. lbs.	2.4 2.4
B-RAD X 10K-M B-RAD X 8000	1000-10850 Nm 740-8000 ft. lbs.	1.7 1.7
B-RAD X 15K-M B-RAD X 11K	1500-15000 Nm 1100-11000 ft. lbs.	1.2 1.2

Tool Model

Torque Range

RPM

B-RAD X 7000-M

B-RAD X 5000

700-7000 Nm

500-5000 ft. lbs.

2.4

B-RAD X 10K-M

B-RAD X 8000

1000-10850 Nm

740-8000 ft. lbs.

1.7

B-RAD X 15K-M

B-RAD X 11K

1500-15000 Nm

1100-11000 ft. lbs.

1.2

Ergonomics

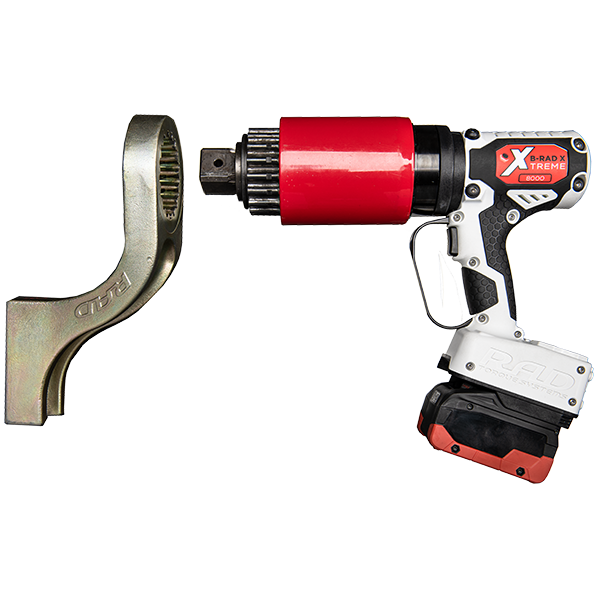

The B-RAD X takes pistol grip tool design to the next level, positioning the motor, grip, and display so that the tool is comfortable and easy to use. For those hard-to-reach applications, auxiliary handles and hangers are available to ensure safe operation.

Productivity

Making remarkable improvements in efficiency and power output, the B-RAD X operates 20% faster than other RAD battery tools. This speed increase coupled with the efficient motor further extends the battery life, meaning less time swapping batteries and more time torquing!

Reliability

The B-RAD X has been designed from the ground up to improve durability and reliability - with an extremely rugged polymer plastic handle and redesigned drivetrain, the B-RAD X will keep you working in the toughest of conditions.
