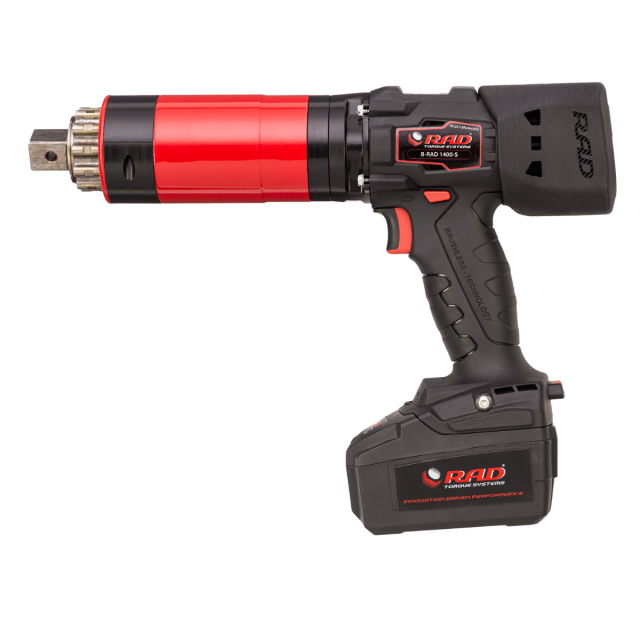

B-RAD S

B-RAD S

B-RAD S Torque Wrench Features:

  • Torque ranges up to 5,000 ft/lbs (7,000 Nm), equipped with the latest lithium-ion standard

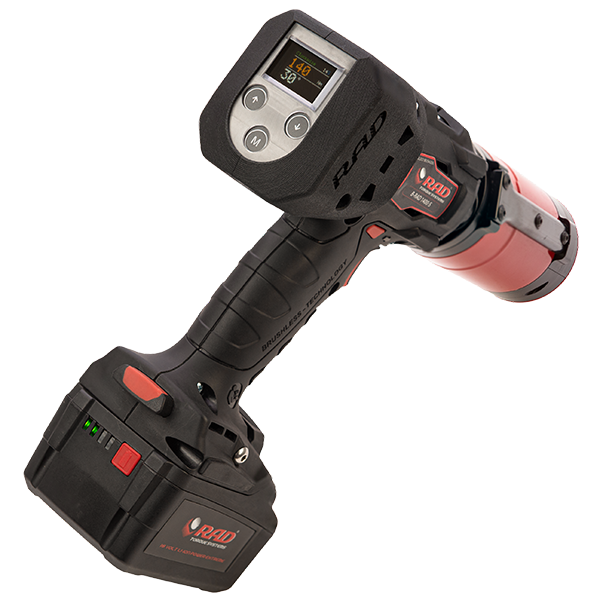

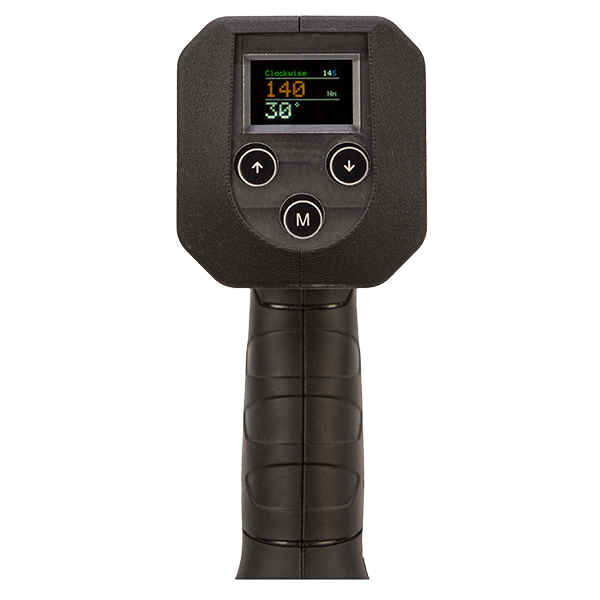

  • Available in two different platforms: either with a simple to use screen or with a digital display
  • Accuracy of +/- 5% and repeatability of +/- 2%
  • All tools include reaction arm, two batteries, charger, retaining ring, storage case, operations manual, as well as a calibration certificate with ISO 17025 accreditation

Torque Range: Up to 5,000 ft/lbs. (7,000 Nm)

Battery Torque Wrench with Data Logging at your Fingertips

The B-RAD S, which stands for “strain gauge” technology, is equipped with a built-in transducer that offers real-time torque measurements for on-the-spot accuracy. The B-RAD S is a great tool for bolt auditing applications because of the built-in “prove” mode, which gives operators the ability to check a previously tightened bolt without risking and over torque.

With torque and angle capabilities, the B-RAD S torque wrench is ready for the most critical applications and will hold up to scrutiny on a variety of projects. The B-RAD S includes Bluetooth connectivity, torque check functionality, and automatic reaction arm release to minimize your downtime and maximize your torque output.

B-RAD S MODEL CHART

Select Your Preferred Unit of Measurement for the Model Chart

Tool ModelTorque RangeRPM

B-RAD S 700

B-RAD S 500

70-700 Nm

50-500 ft/lbs.

21

21

B-RAD S 1400

B-RAD S 1000

135-1400 Nm

100-1000 ft/lbs.

9.6

9.6

B-RAD S 2000

B-RAD S 1500

200-2000 Nm

150-1500 ft/lbs.

5.6

5.6

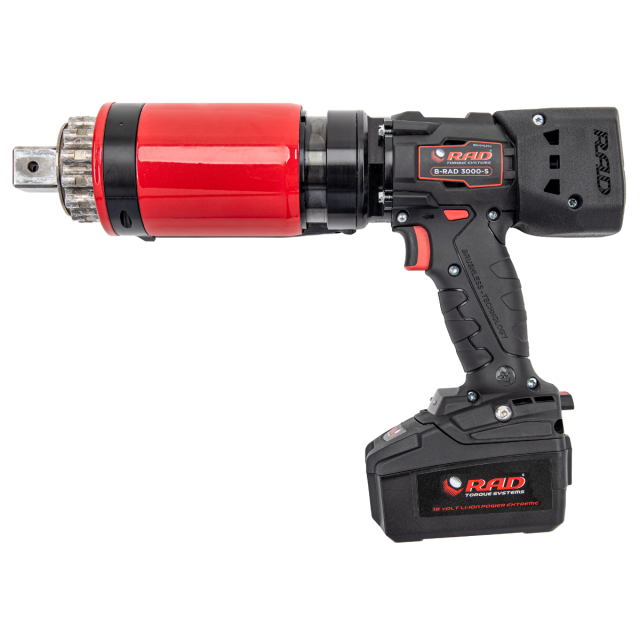

B-RAD S 4000

B-RAD S 3000

400-4000 Nm

300-3000 ft/lbs.

3

3

B-RAD S 7000

B-RAD S 5000

700-7000 Nm

500-5000 ft/lbs.

1.9

1.9

Ergonomics

With a small pistol-grip handle, motor, and gearbox, the B-RAD S is lightweight, making it easy to handle and simple to use.

Productivity

The B-RAD S offers an increased battery life and can withstand harsher environments, keeping you working longer.

Reliability

The new brushless motor is more efficient and won’t wear out over time as it contains no consumable parts.

HOW TO USE: B-RAD S

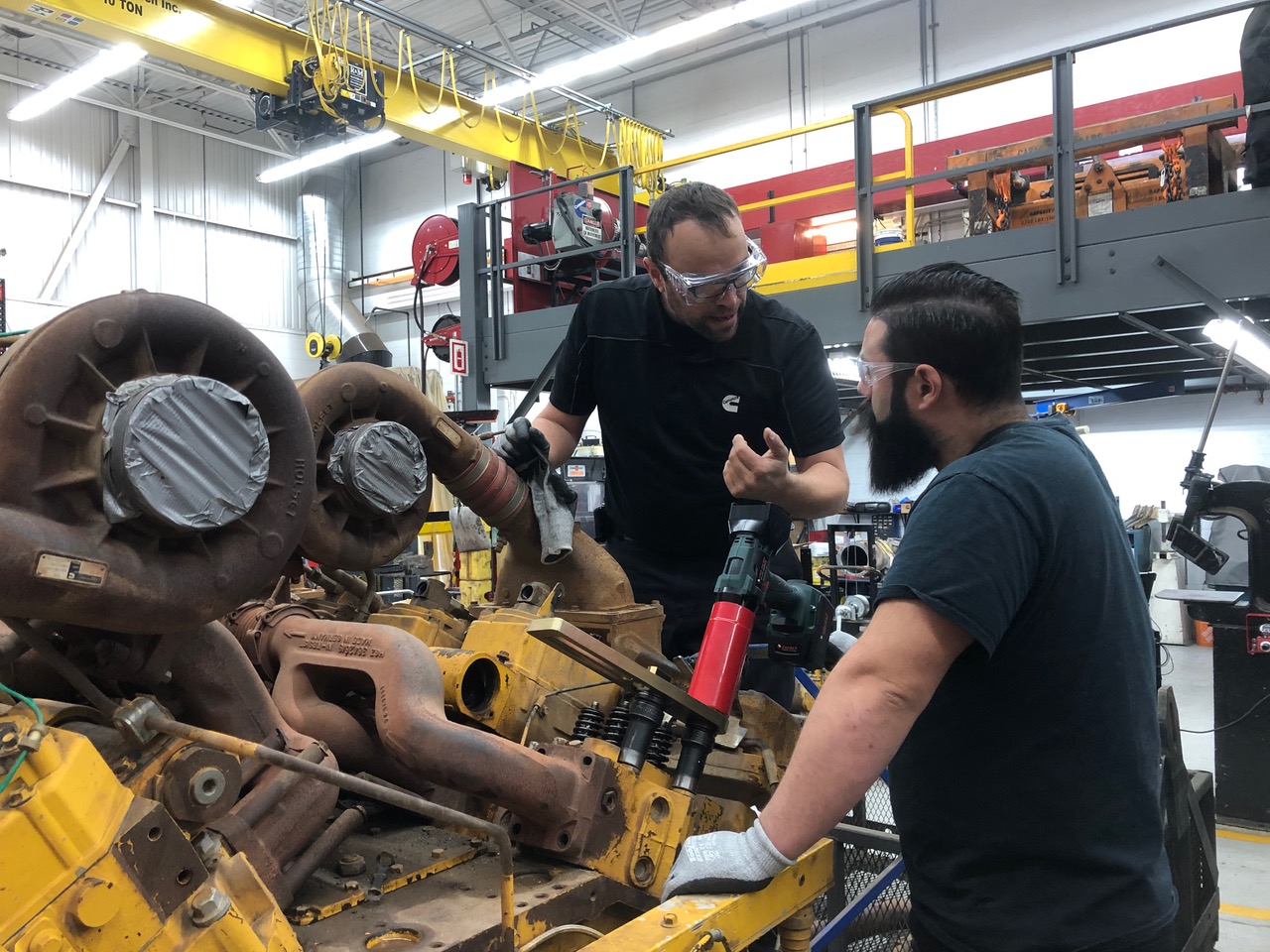

In Action

B-RAD S

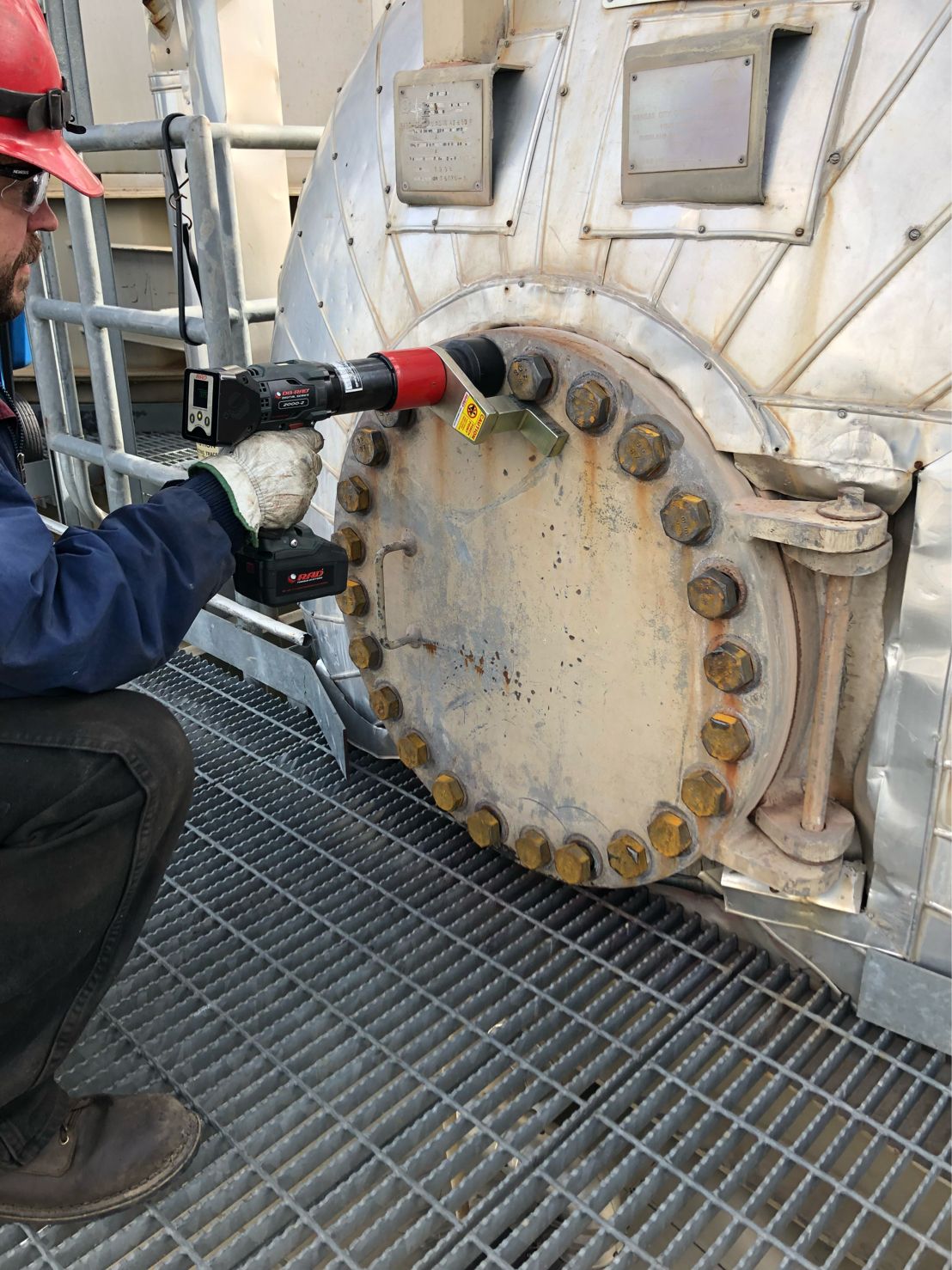

In Action

B-RAD S

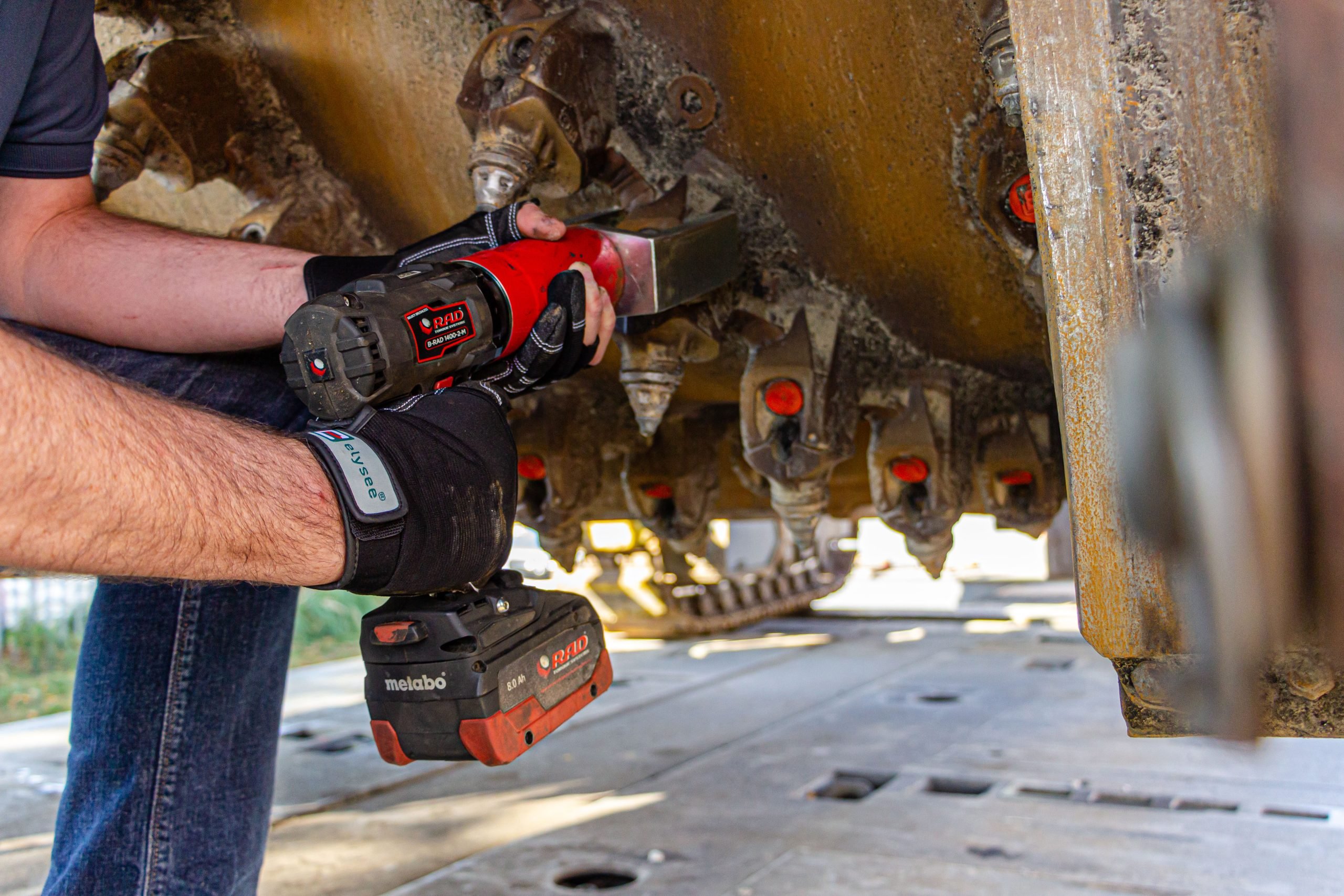

In Action

B-RAD S

In Action

B-RAD S
