RAD Wheel Nut Bolting & OTR Mining

RAD Wheel Nut Bolting & OTR Mining

RAD Wheel Nut Features:

  • RAD planetary gear reduction wrenches are vibration free
  • High accuracy to prevent accidentally under or over tightening
  • Numerous configurations are ideal for tight clearances
  • Extended reaction point for safe and quick operation
  • Accuracy to ensure correct tightened wheels

Torque Range: 300-1,800 ft/lbs (400-2,400 Nm)

Precision Wheel Nut Bolting for Off the Road Mining

The RAD wheel nut bolting series was designed with one job in mind: wheel nut bolting where torque control is a must. Accidents caused by incorrectly tightened wheel nuts are considered a serious problem in the industry. Impact wrenches are particularly notorious for these problems, increasing the risk of HAVS related injuries. These pneumatic tool kits come with extensions or reaction arms that are made specifically for OTR (Off the Road) mining applications.

The Fixed Nose Extension (-R)
The fixed nose extension (-R) was developed exclusively for extreme duty maintenance of mining haul trucks from 50 – 400-ton capacities and front-end loaders. The extended nose allows safe access to virtually all wheel configurations found on today’s heavy equipment.

The Nose Extension Kit (-NX)
The nose extension kit (-NX) was designed with flexibility in mind. Complete with three different reaction arms and a nose extension for hard-to-reach areas, the GX-NX Kit is a “go anywhere” tool capable of a variety of applications, but especially suitable for off-road construction equipment.

All RAD pneumatic tools include:

  • Reaction arm and snap ring
  • Hose and fittings
  • Tool holder with FRL unit
  • Operator’s manual
  • Calibrated to ISO 17025
  • Safety instruction available on USB flash drive

RAD WHEEL NUT BOLTING & OTR MINING MODEL CHART

Select Your Preferred Unit of Measurement for the Model Chart

Tool Model Torque Range RPM

10GX-R

7GX-R

400-950 Nm

300-700 ft/lbs.

115

115

14GX- NX

10GX-NX

275-1350 Nm

200-1000 ft/lbs.

20

20

20NDX-R

15NDX-R

400-2000 Nm

300-1500 ft/lbs.

10

10

20DX-NX

15DX-NX

400-2000 Nm

300-1500 ft/lbs.

10

10

2400NGX-R

1800NGX-R

700-2400 Nm

500-1800 ft/lbs.

10

10

Ergonomics

There are a lot of tight spaces and hard to reach bolts on mining trucks, and we have tools built specifically for those jobs. Nose extensions allow the operator to reach hidden bolts, and tool hangers are available to help reduce operator fatigue.

Productivity

Turnaround time is important in the mining industry and RAD Wheel Nut tools will help keep trucks moving.

Reliability

Requiring minimal maintenance, the RAD Wheel Nut tools will accurately tighten bolts for as long as the job takes.

HOW TO USE: RAD Wheel Nut Bolting & OTR Mining

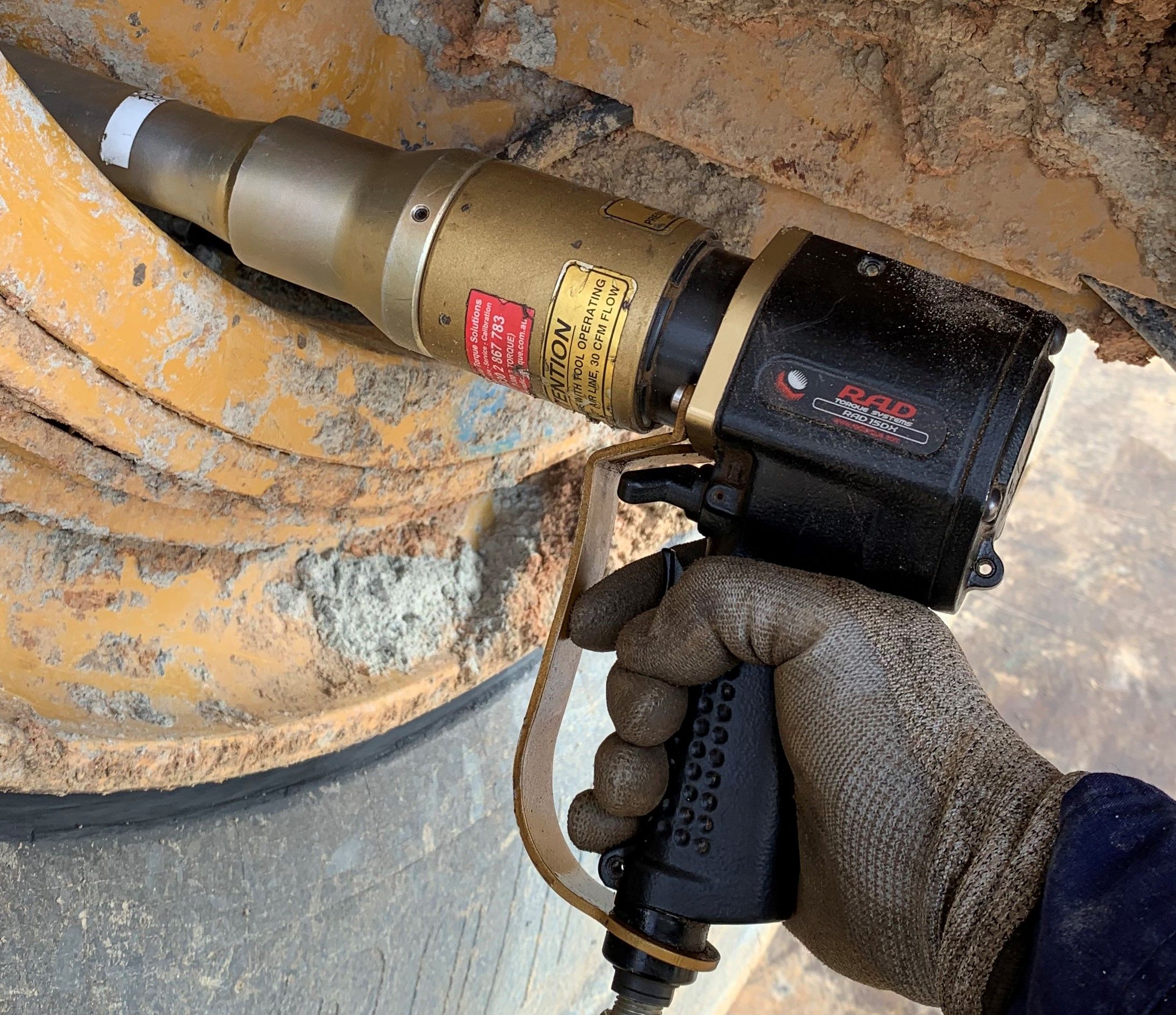

In Action

RAD Wheel Nut Bolting & OTR Mining

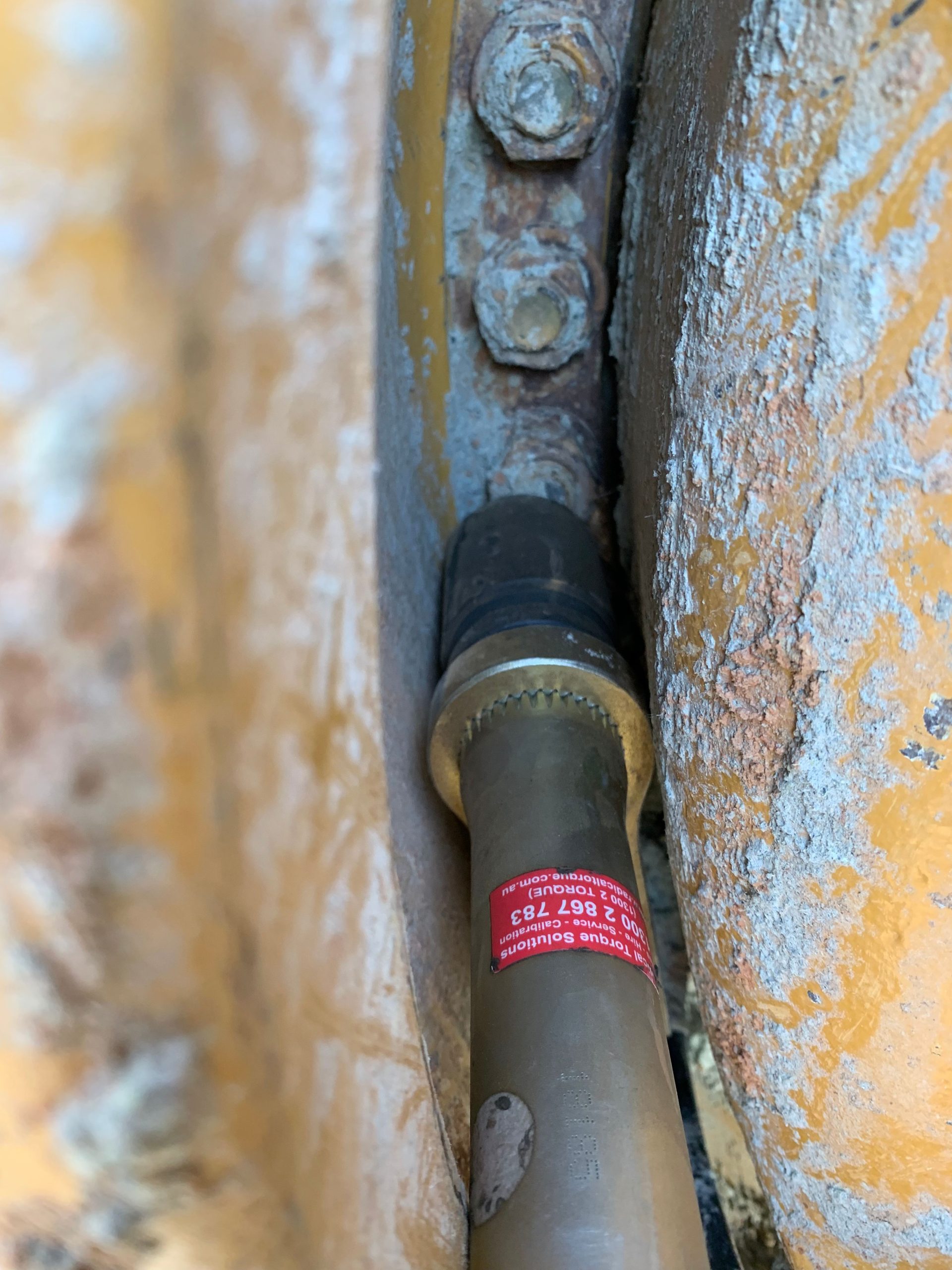

In Action

RAD Wheel Nut Bolting & OTR Mining

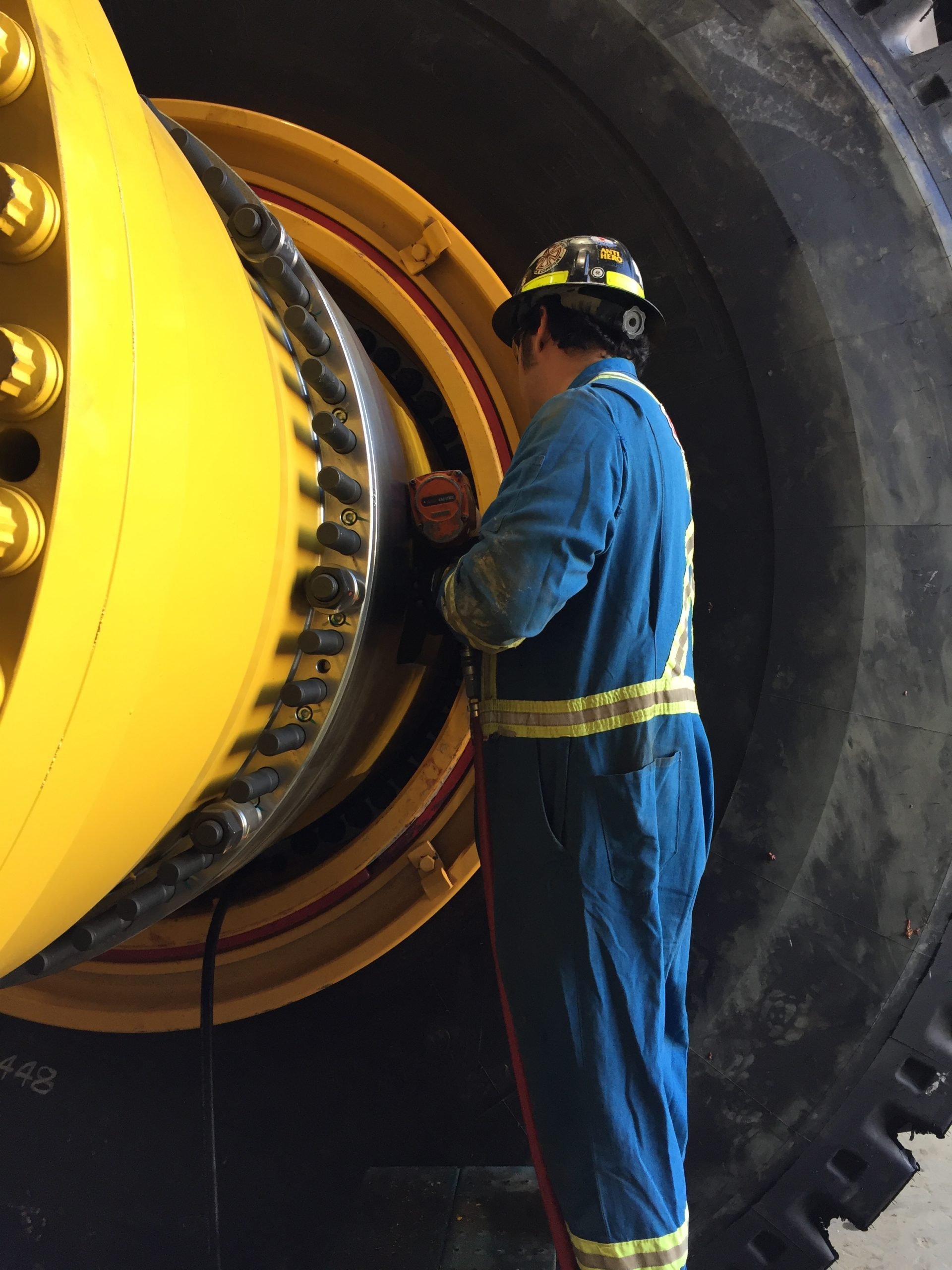

In Action

RAD Wheel Nut Bolting & OTR Mining
