Electric Torque Wrench | Precision & Power with E-RAD BLU

E-RAD BLU

E-RAD BLU Tool Features:

Multiple models of electric torque wrenches can be used in combination with one controller
Bluetooth connectivity with RAD Smart Socket™ for transducer verified joint calibration
Highly advanced data logging and tool management features
Military grade single cable and connector system

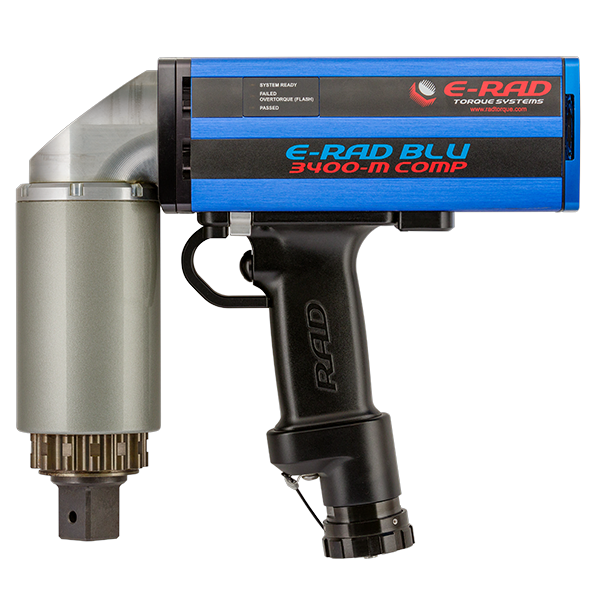

Available in a 90-degree gearbox

Torque Range: 100 – 11,000 ft. lbs. (135 – 15,000 Nm)

Product Sheet

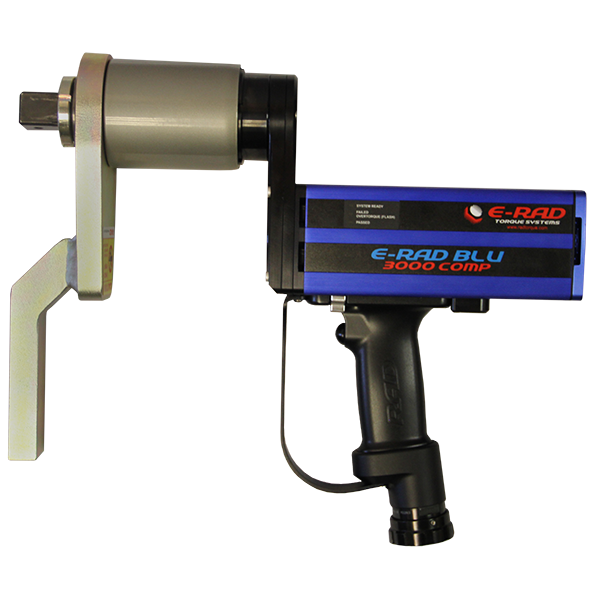

Electronic Torque Wrench with Advanced Technology for Complex Bolting

E-RAD BLU series precision electric torque wrench tools aim to achieve a high degree of accuracy (+/- 2.8% on target) for high torque assembly applications. Our patented and extremely advanced electronic pistol grip torque wrench combines the legendary RAD gearbox design and AC Servo motor technology to reduce bolting time up to 300% as compared to conventional hydraulic wrenches.

The E-RAD BLU has many features to help with the most complicated bolting situations. It is capable of data collection and torque/angle measurement, and advance bolting control that integrates with your tool management system. Moreover, the E-RAD BLU includes a console module with a digital readout.

Torque Ranges: 100 – 11,000 ft. lbs. (135 – 15,000 Nm)

Data collection capability
LED indicator lights (pass/fail)
Push-button select torque
Lightweight and ergonomic pistol grip
Precision tool, +/- 2.8% accuracy

E-RAD BLU & Smart Socket™

The E-RAD BLU series is Bluetooth compatible, which can be used in conjunction with a RAD Smart Socket™ for field and transducer verification (available for purchase separately). This allows the E-RAD electric torque wrench to be specifically calibrated on different joint types, as the E-RAD will follow the smart socket reading.

Learn more about RAD Smart Sockets™

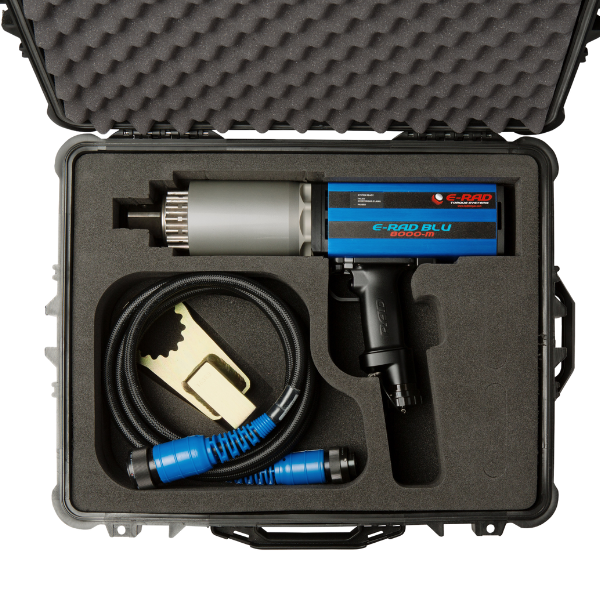

E-RAD BLU Touch Control Case

All E-RAD BLU precision electric torque wrench tools come with a Touch Control Case that lets you set torque and angle in single-digit increments. A clearly visible touchscreen provides the data you need in the field, all with a low noise level of only 75 db.

Learn more about E-RAD BLU Control Case

E-RAD BLU MODEL CHART

Select Your Preferred Unit of Measurement for the Model Chart

Imperial Metric

Tool Model	Torque Range	RPM
E-RAD BLU 950-M E-RAD BLU 700	135-950 Nm 100-700 ft/lbs.	15 20
E-RAD BLU 2000-M E-RAD BLU 1500	270-2000 Nm 200-1500 ft/lbs.	8 9
E-RAD BLU 3400-M COMP E-RAD BLU 2500 COMP	340-3400 Nm 250-2500 ft/lbs.	4.9 5.5
E-RAD BLU 3400-90-M Degree E-RAD BLU 2500-90 Degree	340-3400 Nm 250-2500 ft/lbs.	6 6
E-RAD BLU 4000-M E-RAD BLU 3000	675-4000 Nm 500-3000 ft/lbs.	5.5 5.5
E-RAD BLU 8000-M E-RAD BLU 6000	2000-8000 Nm 1500-6000 ft/lbs.	4 4
E-RAD BLU 10K-M E-RAD BLU 7500	2000-10000 Nm 1500-7500 ft/lbs.	1.5 1.5
E-RAD BLU 15K-M E-RAD BLU 11K	4000-15000 Nm 3000-11000 ft/lbs.	1.3 1.3

Tool Model

Torque Range

RPM

E-RAD BLU 950-M

E-RAD BLU 700

135-950 Nm

100-700 ft/lbs.

E-RAD BLU 2000-M

E-RAD BLU 1500

270-2000 Nm

200-1500 ft/lbs.

E-RAD BLU 3400-M COMP

E-RAD BLU 2500 COMP

340-3400 Nm

250-2500 ft/lbs.

4.9

5.5

E-RAD BLU 3400-90-M Degree

E-RAD BLU 2500-90 Degree

340-3400 Nm

250-2500 ft/lbs.

E-RAD BLU 4000-M

E-RAD BLU 3000

675-4000 Nm

500-3000 ft/lbs.

5.5

E-RAD BLU 8000-M

E-RAD BLU 6000

2000-8000 Nm

1500-6000 ft/lbs.

E-RAD BLU 10K-M

E-RAD BLU 7500

2000-10000 Nm

1500-7500 ft/lbs.

1.5

*E-RAD BLU 15K-M

*E-RAD BLU 11K

4000-15000 Nm

3000-11000 ft/lbs.

1.3

*Also available in a 2.5″ square drive.

Ergonomics

The E-RAD BLU uses a fatigue reducing pistol-grip handle to ensure the tool can be used comfortably all day long.

Productivity

The E-RAD BLU has all the features to get your job done – angle operation, data collection, and the ability to integrate with process control software.

Reliability

Using RAD’s patented gearbox design and state of the art electronics, the E-RAD BLU is the most reliable electric torque wrench on the market and is designed to work hard in any environment.
