RAD Smart Sockets | Measuring Peak Torque Directly on the Bolt

RAD Smart Sockets™

RAD Smart Socket™ Features:

Measures and displays peak torque up to 12,000 ft/lbs (16,000 Nm)
Build-in rechargeable battery
“Pass” or “Fail” indication function
Data logging – download logs (XLS, CSV, PDF)
Free software included
Full traceability of bolted joints
Optional: Tablet, SDM calibration bench

Torque Range: 150-12,000 ft/lbs (200-16,000 Nm)

Product Sheet

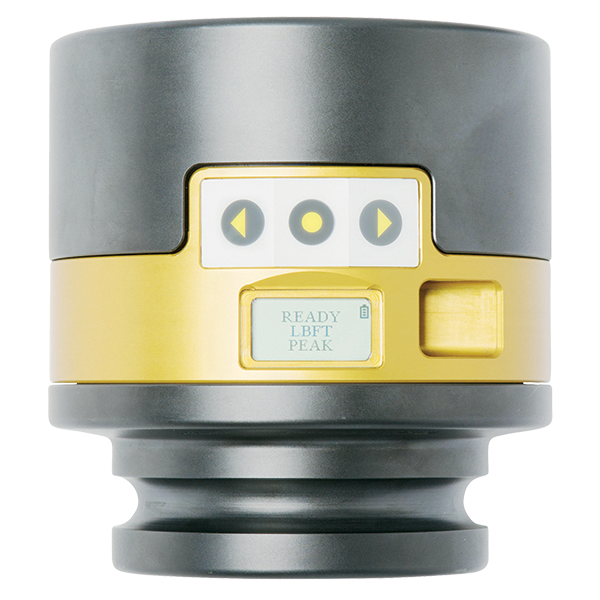

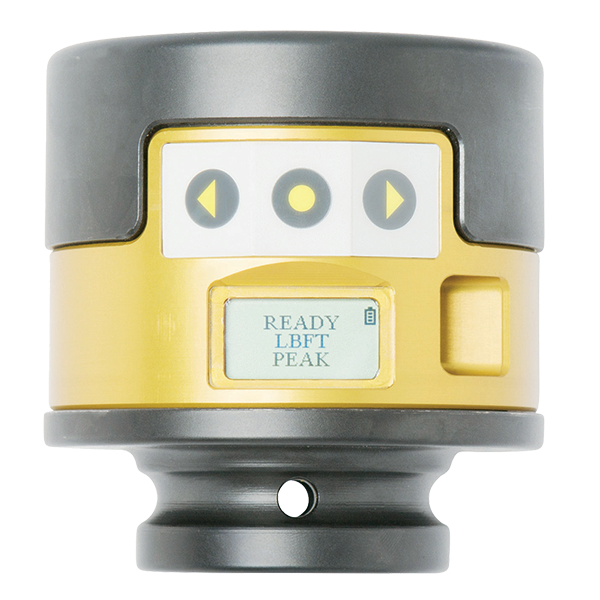

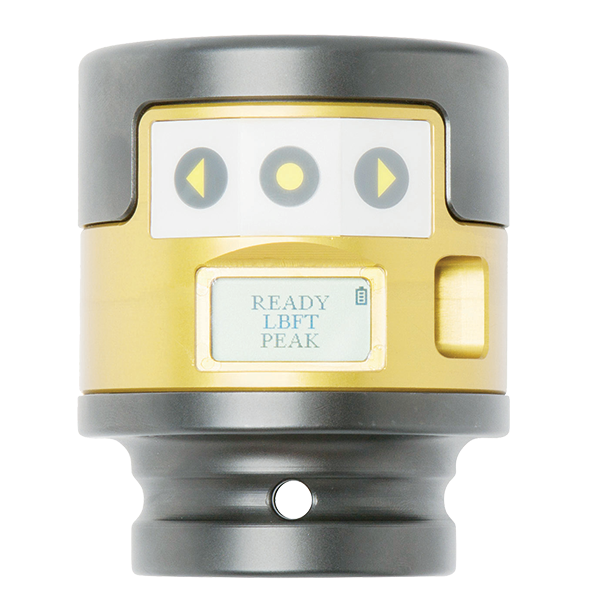

Revolutionary Socket for Measuring Torque Directly on the Bolt

The RAD Smart Socket™ uses our transducer technology combined with custom sockets to measure the torque applied to the bolt during a torque cycle. By innovative design, the Smart Socket™ is no larger than a standard socket. Its compact size and innovative technology makes the Smart Socket™ a perfect audit tool for inspecting bolted joints and can function as a master calibration for various torque tools. Also available in imperial sizes.

All RAD Smart Sockets™ include:

Weatherproof storage case
Plug and USB cord
Calibration certificate to ISO 17205

RAD SMART SOCKETS™ MODEL CHART

Select Your Preferred Unit of Measurement for the Model Chart

Imperial Metric

Smart Socket Series	Socket Hex Size	Drive Size
SMART SOCKET 1500/2000-M (Metric range: 200-2000)	SMART SOCKET 1500/2000-M (Imperial range: 150-1500)	33mm 1-1/2" (38mm)	1" 1"
36mm 1-3/4"	1" 1"
SMART SOCKET 3400/4600-M (Imperial range: 300-3400)	41mm (1-5/8") 1-7/8"	1" 1"
46mm (1-13/16") 2.0" (51mm)	1" 1"
SMART SOCKET 3400/4600-M (Metric range: 460-4600)	SMART SOCKET 3400/4600-M (Imperial range: 340-3400)	50mm 2-1/16"	1" 1"
SMART SOCKET 3400/4600-M (Metric range: 400-4600)	SMART SOCKET 3400/4600-M (Imperial range: 300-3400)	55mm 2-1/4" (57mm)	1" 1"
SMART SOCKET 8000/10800-M (Imperial range: 800-8000)	60mm 2-5/8" (67mm)	1" 1"
65mm (2-9/16") 2-3/4" (70mm)	1.5" 1.5"
SMART SOCKET 8000/10800-M (Metric range: 1100-10800)	70mm (2-3/4") 3.0" (76mm)	1.5" 1.5"
SMART SOCKET 12000/16200-M (Imperial range: 800-12000)	80mm 3-3/4" (95mm)	1.5" 1.5"
SMART SOCKET 12000/16200-M (Metric range: 1600-16200)	90mm 4-1/8" (105mm)	1.5" 1.5"
SMART SOCKET 12000/16200-M (Imperial range: 1200-12000)	100mm (3-15/16") 4-5/8"	1.5" 1.5"

Smart Socket Series

Socket Hex Size

Drive Size

SMART SOCKET 1500/2000-M (Metric range: 200-2000)

33mm

1-1/2" (38mm)

36mm

1-3/4"

41mm (1-5/8")

1-7/8"

46mm (1-13/16")

2.0" (51mm)

SMART SOCKET 3400/4600-M (Metric range: 460-4600)

50mm

2-1/16"

SMART SOCKET 3400/4600-M (Metric range: 400-4600)

55mm

2-1/4" (57mm)

60mm

2-5/8" (67mm)

65mm (2-9/16")

2-3/4" (70mm)

1.5"

SMART SOCKET 8000/10800-M (Metric range: 1100-10800)

70mm (2-3/4")

3.0" (76mm)

1.5"

80mm

3-3/4" (95mm)

1.5"

SMART SOCKET 12000/16200-M (Metric range: 1600-16200)

90mm

4-1/8" (105mm)

1.5"

100mm (3-15/16")

4-5/8"

1.5"

Ergonomics

Remotely view the torque measurements in real time, allowing you to witness the torque moment from a safe distance.

Productivity

The RAD Smart Socket™ measures torque directly on the head of the bolt, eliminating variables and documenting the actual torque output of a tool. It’s a quick method for tool verification and troubleshooting bolted joints.
