Ergonomics and safety are very important during the design phase of any new RAD tool. In addition to making the job more ergonomic and safe, we want our tools to be easy to use, powerful, accurate and very reliable. RAD believes safety features should not impede workplace efficiency and speed, but should make workers aware of the risks involved in working with powerful tools. RAD has developed a range of ergonomic and safety enhancing features.
e-rad-two-hand-control-small
rad-select-1
ra-select-1
Tool Safety Features:
- Double Safety Trigger Option
- Trigger and Hand Guards
- Tool Hangers and Custom Reaction Arms
Ergonomic features:
- RAD’s patented planetary gear reduction drive system delivers 88 times less vibration than impact wrenches. No risk of HAVS injuries (Hand-Arm-Vibration-Syndrome). Pistol grip trigger/control reduces operator fatigue
- RAD’s low profile reaction arm eliminates all the operational load on the operator.

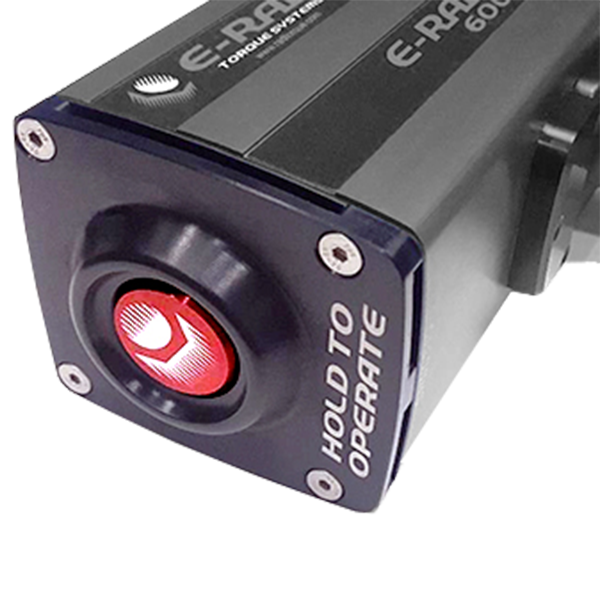

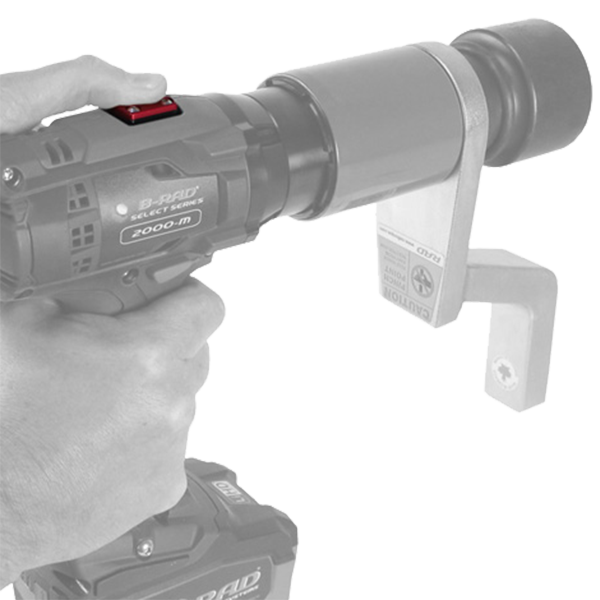

Double Safety Trigger
| Part Number | Description |
|---|---|
| 25949 | B-RAD Select Double Safety Trigger Option |
| 26940 | B-RAD Select Double Safety Trigger Assembly Kit |
| 28795 | E-RAD Double Safety Button (E-RAD 700, 1500, 2500) |
| 28797 | E-RAD Double Safety Button (E-RAD 3000, 6000, 7500, 11K) |

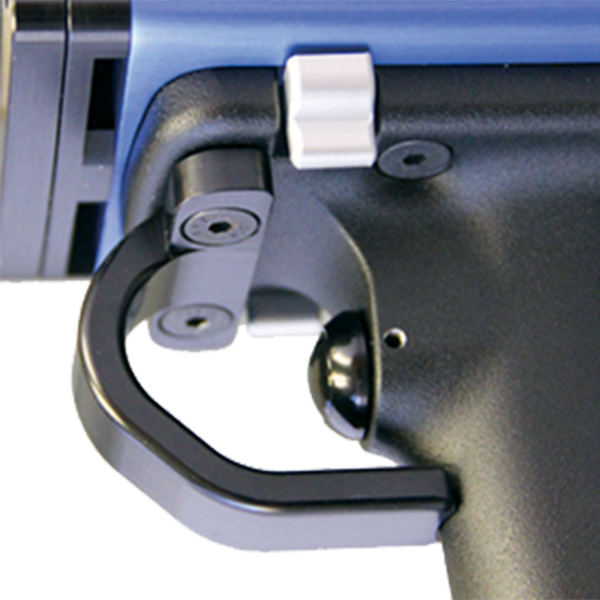

Hand and Trigger Guards
| Part Number | Description |
|---|---|
| 21436 | Hand Guard Assembly - Pneumatic NPW 120 |
| 21437 | Hand Guard Assembly - Pneumatic NPW 180 |
| 21600 | Hand Guard Assembly - Pneumatic NPW 200 |
| 21605 | Hand Guard Assembly - Pneumatic NPW 200 for RAD 60DX |
| 21889 | Trigger Guard Assembly - E-RAD 2.5/BLU |
See the presentation below for the safety instructions on a RAD pneumatic torque wrenches.
