Reaction Arms

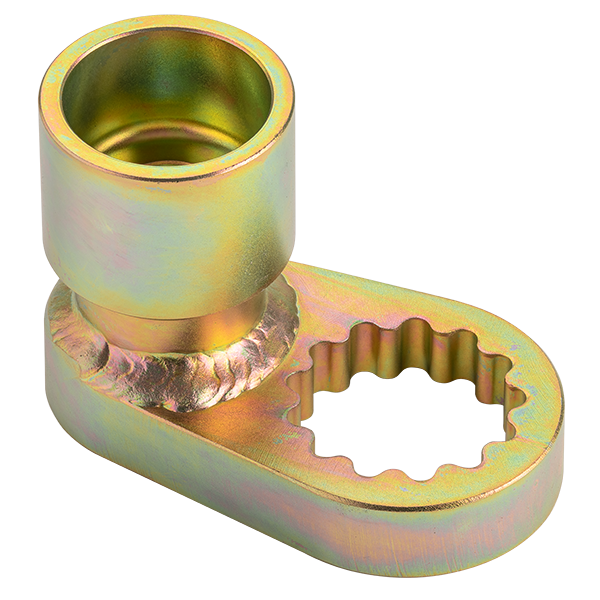

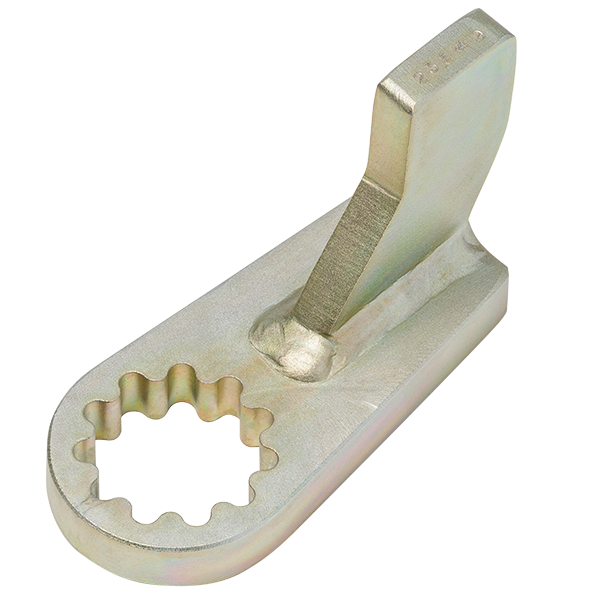

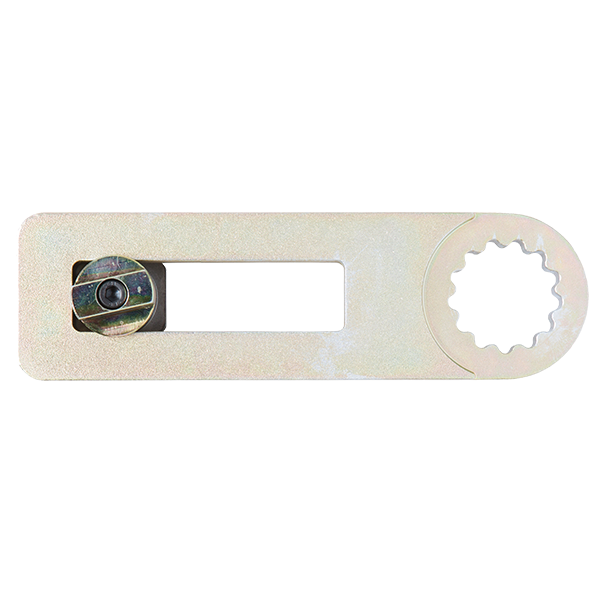

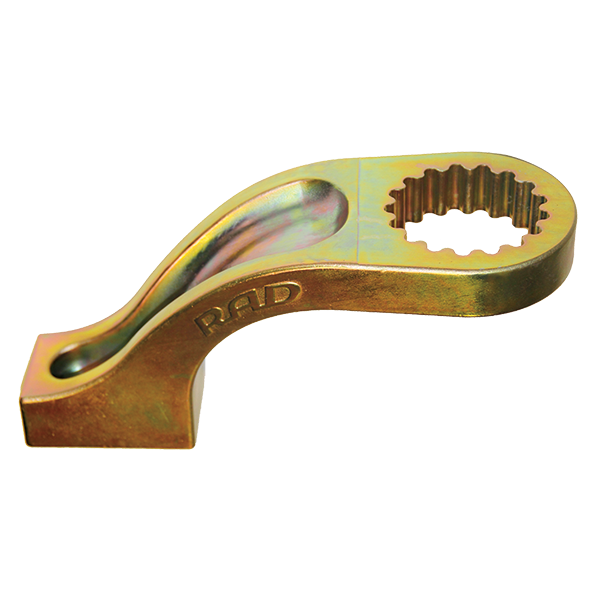

Each RAD Torque tool includes a standard reaction arm. In addition, you can order special reaction arms to ensure correct reaction for different applications. Please contact us if you have a specific or custom application. Our engineering department can design a reaction arm to meet all your needs.

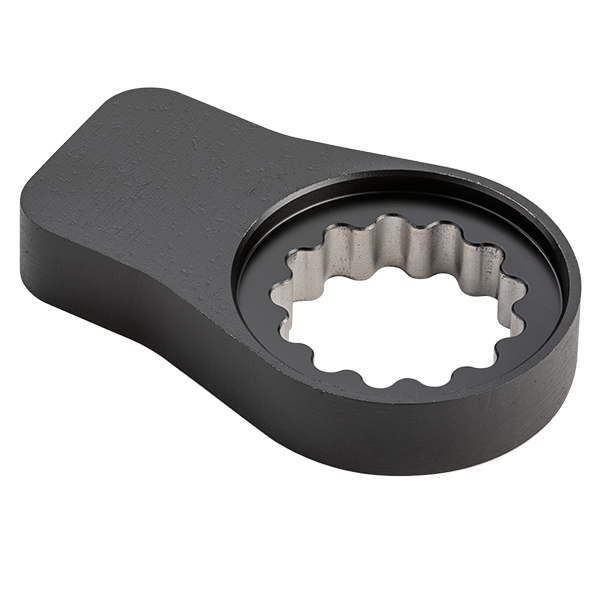

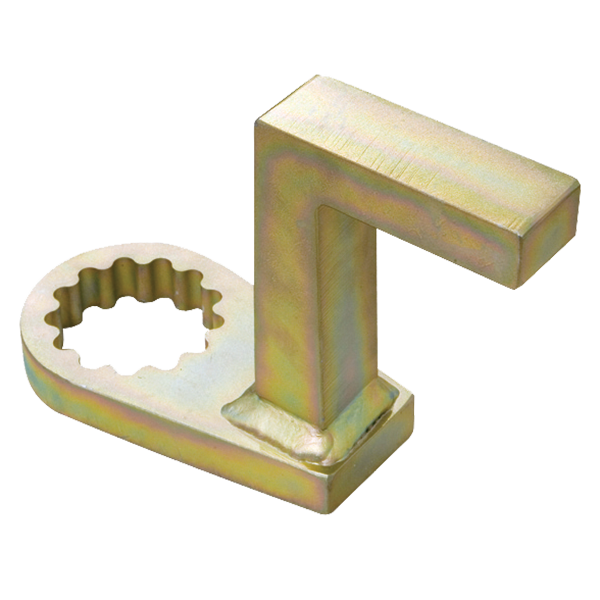

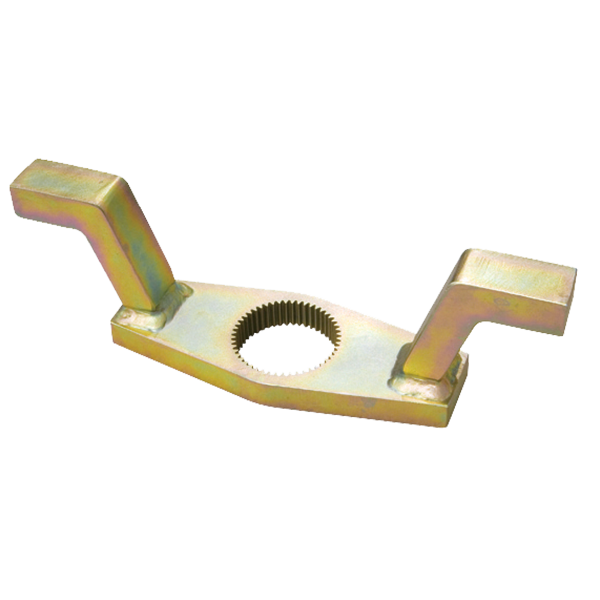

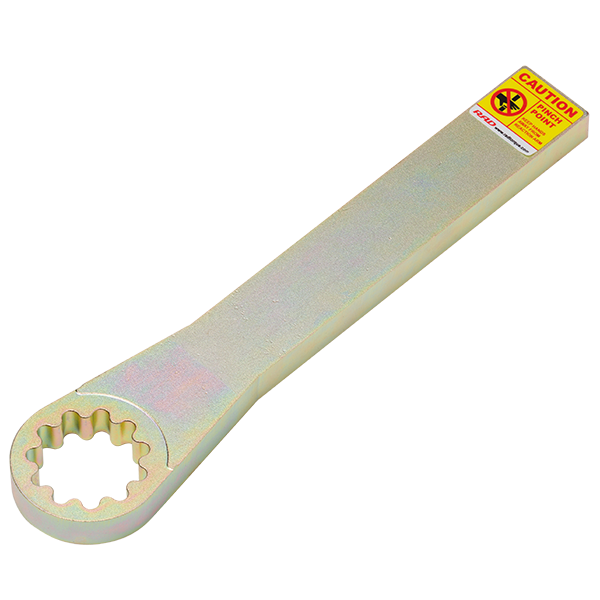

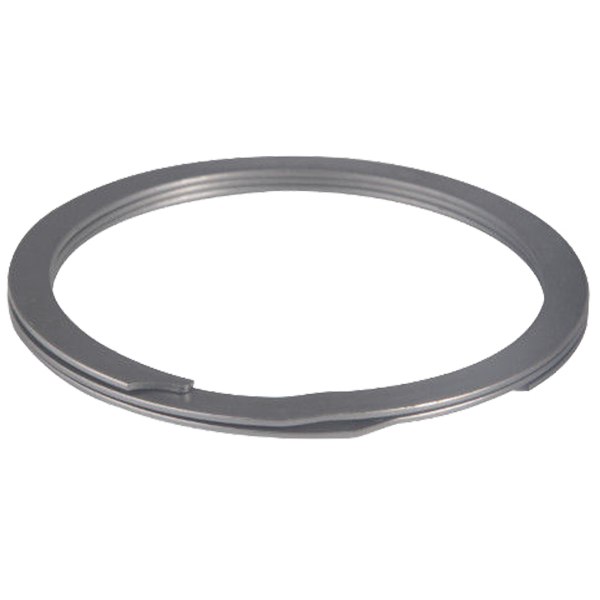

| Pneumatic Series | Standard | Deep Socket | Double Ended Arm | Blank | Double Ended Blank | Retaining Ring |
|---|---|---|---|---|---|---|
| RAD 350SL (-2) | 10686 | 10687 | 10688 | 10036 | 10037 | 10306 |
| RAD 7GX (-2) | 19260 | 13367 | 13368 | 13364 | 13365 | 12733 |
| RAD 7GX-R | 13512 | 12902 | 13442 | 13773 | 12903 | 10306 |
| RAD 10GX (-2) | 19260 | 13367 | 13368 | 13364 | 13365 | 12733 |
| RAD 15DX (-2) | 17375 | 18480 | 19094 | 17888 | 19093 | 17367 |
| RAD 1800NG | 10004 | 10007 | 10009 | 10005 | 10008 | 10014 |
| RAD 1800NGX-R | 13484 | 13515 | 13516 | 13513 | 13514 | 13476 |
| RAD 25GX (-2) | 18250 | 18251 | 10516 | 10513 | 10448 | 10509 |
| RAD 30DX (-2) | 21482 | 24814 | 25437 | 24813 | 25016 | 21474 |
| RAD 34 GX | 11531 | 11534 | 11533 | 11530 | 11532 | 11350 |
| RAD 50 DX Serpentine | 25286 | 26118 | 26119 | 26120 | 26121 | 21455 |
| RAD 60 DX | 15375 | 15788 | 15790 | 15373 | 15789 | 15367 |
| RAD 80 DX | 23144 | 13508 | 13509 | 13505 | 13506 | 11930 |
| RAD 85 GX | 23144 | 13508 | 13509 | 13505 | 13506 | 11930 |
| RAD 110DX | 23776 | 26157 | 26158 | 26159 | 26160 | 26160 |
| E-RAD Series | Standard | Deep Socket | Double Ended Arm | Blank | Double Ended Blank | Retaining Ring |
|---|---|---|---|---|---|---|
| E-RAD (BLU) 700 | 19260 | 13367 | 13368 | 13364 | 13365 | 12733 |
| E-RAD (BLU) 1500 | 17375 | 18480 | 19094 | 17888 | 19093 | 17367 |
| E-RAD (BLU) 2500 COMP | 18250 | 18251 | 10516 | 10513 | 10448 | 10509 |
| E-RAD (BLU) 3000 | 11531 | 11534 | 11533 | 11530 | 11532 | 11350 |
| E-RAD (BLU) 6000 | 16368 | 17643 | 15790 | 16260 | 15789 | 15367 |
| E-RAD (BLU) 7500 | 23144 | 13508 | 13509 | 13505 | 13506 | 11930 |
| E-RAD (BLU) 11K | 23776 | 26157 | 26158 | 26159 | 26160 | 18301 |
| B-RAD Series | Standard | Deep Socket | Double Ended Arm | Blank | Double Ended Blank | Retaining Ring |
|---|---|---|---|---|---|---|
| (D)B-RAD (SELECT) 500 | 19260 | 13367 | 13368 | 13364 | 13365 | 12733 |
| (D)B-RAD (SELECT) 1000 | 19260 | 13367 | 13368 | 13364 | 13365 | 12733 |
| (D)B-RAD (SELECT) 1500 | 17375 | 18480 | 19094 | 17888 | 19093 | 17367 |
| (D)B-RAD (SELECT) 3000 Serpentine | 21482 | 24814 | 25437 | 24813 | 25016 | 21474 |
| (D)B-RAD (SELECT) 3000 Spline | 10022 | 10025 | 10027 | 10024 | 10026 | 21474 |
| B-RAD (BL SELECT) 5000 | 25286 | 26118 | 26119 | 26120 | 26121 | 21455 |
| V-RAD Series | Standard | Deep Socket | Double Ended Arm | Blank | Double Ended Blank | Retaining Ring |
|---|---|---|---|---|---|---|
| V-RAD 1000 | 19260 | 13367 | 13368 | 13364 | 13365 | 12733 |
| V-RAD 1500 | 17375 | 18480 | 19094 | 17888 | 19093 | 17367 |
| V-RAD 3000 | 21482 | 24814 | 25437 | 24813 | 25016 | 21474 |
| DV-RAD 1000 | 19260 | 13367 | 13368 | 13364 | 13365 | 25243 |
| DV-RAD 1500 | 17375 | 18480 | 19094 | 17888 | 19093 | 25242 |
| DV-RAD 2500 | 10514 | 10515 | 10516 | 10513 | 10448 | 10509 |
Ergonomics
Reaction arms hold the torque load, so the tool operator doesn’t have to.
Productivity
Custom reaction arms may be available for your application, making the tool safer and more productive for your team.
Reliability
When used as instructed, the RAD reaction arms will be functional for years to come.
