RAD High Speed

RAD High Speed

RAD High Speed Torque Wrench Features:

  • Two-speed models feature a unique fully automatic gearbox design, eliminating the time-consuming switch between high and low speed gear
  • Smooth continuous flow of controlled torque eliminating destructive hammering
  • Faster run down on time sensitive bolting applications reaching speeds as high as 80 RPM
  • RAD High Speed torque wrenches reduce operator strain and injury, resulting in increased productivity
  • Controlled torque with an accuracy of +/- 4% on target and repeatability of +/- 2%

Torque Range: 350-3,000 ft/lbs (475-4,000 Nm)

Automatic Two-Speed Technology with High RPM for Fast Rundown.

The RAD High Speed pneumatic torque wrenches offers two different speeds while torquing. Starting with a higher RPM for fast rundown and then automatically switching to a lower speed for precision tightening. What makes this tool stand out is its ability to get the job done faster because of the increased and impressive rundown speed.

All RAD pneumatic tools include:

  • Reaction arm and snap ring
  • Hose and fittings
  • Tool holder with FRL unit
  • Operator’s manual
  • Calibrated to ISO 17025
  • Safety instruction available on USB flash drive

RAD HIGH SPEED MODEL CHART

Select Your Preferred Unit of Measurement for the Model Chart

Tool ModelTorque RangeRPM

RAD 14GX-2-M

10GX-2

475-1400 Nm

350-1000 ft/lbs.

85

85

RAD 20DX-2-M

15DX-2

700-2000 Nm

500-1500 ft/lbs.

50

50

RAD 34GX-2-M

25GX-2

950-3400 Nm

700-2500 ft/lbs.

44

44

RAD 40DX-2-M

30DX-2

1400-4000 Nm

1000-3000 ft/lbs.

49

49

Ergonomics

RAD High Speed pneumatic tools get the job done faster, reducing cycle time and operator fatigue.

Productivity

Get more done with faster rundown times thanks to the automatic two-speed gearbox.

Reliability

Requiring minimal maintenance, the RAD High Speed pneumatic tools will accurately tighten bolts for as long as the job takes.

HOW TO USE: RAD High Speed

In Action

RAD High Speed

In Action

RAD High Speed

In Action

RAD High Speed

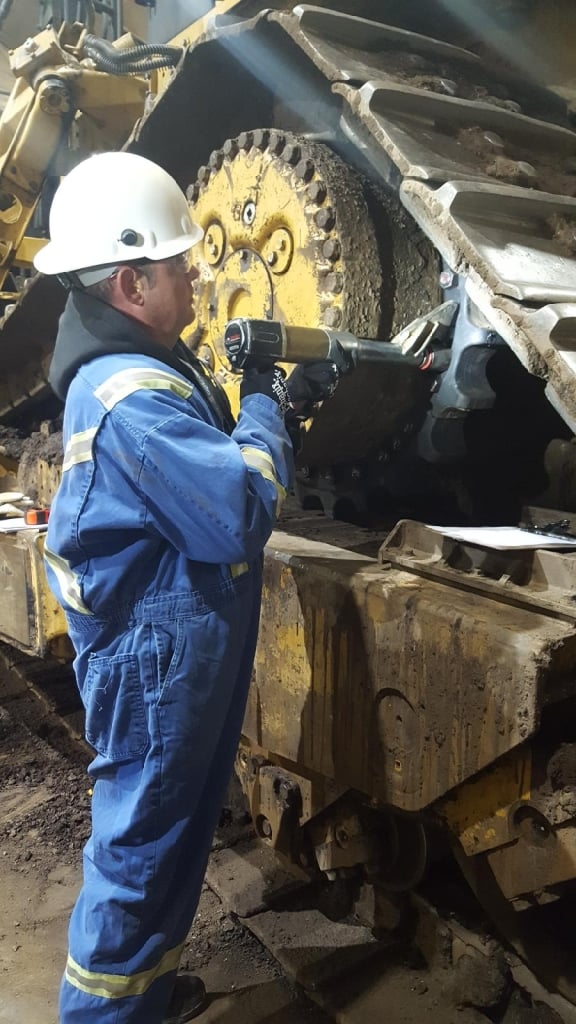

Gold Rush Mitch using a RAD pneumatic torque wrench on mining equipment
