RAD Single Speed

RAD Single Speed

RAD Single Speed Torque Wrench Features:

  • Reliable and dependable solution for the installation and removal of heavy-duty fasteners
  • Patented drive system delivering one of the highest power-to-weight ratios of any pneumatic controlled bolting system
  • Smooth continuous flow of controlled torque eliminating destructive hammering
  • Lightweight ergonomic pistol grip design reducing operator strain and injury, resulting in increased productivity
  • Stall type tool capable of accuracy of +/-4%, and repeatability of +/-2%

Torque Range: 50-11,000 ft. lbs. (70-15,000 Nm)

Pneumatic Torque Wrench with High Power-to-Weight Ratio

The RAD Torque Single Speed pneumatic torque wrench is best known for its excellent power-to-weight ratio. But don’t let its size fool you, the RAD Single Speed is engineered for heavy duty applications all thanks to the latest generation of its planetary gearboxes. This tool is designed for extreme duty use in a variety of industries worldwide.

All RAD pneumatic tools include:

  • Reaction arm and snap ring
  • Hose and fittings
  • Tool holder with FRL unit
  • Operator’s manual
  • Calibrated to ISO 17025
  • Safety instruction available on USB flash drive

RAD SINGLE SPEED MODEL CHART

Select Your Preferred Unit of Measurement for the Model Chart

Tool ModelTorque RangeRPM

RAD 475SL-M

RAD 350SL

70-475 Nm

50-350 ft. lbs.

65

65

RAD 10GX-M

RAD 7GX

150-950 Nm

100-700 ft. lbs.

30

30

RAD 14GX-M

RAD 10GX

275-1400 Nm

200-1000 ft. lbs.

20

20

RAD 20DX-M

RAD 15DX

400-2000 Nm

300-1500 ft. lbs.

10

10

RAD 34GX-M

RAD 25GX

700-3400 Nm

500-2500 ft. lbs.

9

9

RAD 40DX-M

RAD 30DX

1200-4000 Nm

900-3000 ft. lbs.

8

8

RAD *46GX-M

RAD *34GX

1400-4600 Nm

1000-3400 ft. lbs.

12

12

RAD 70DX-M

RAD 50DX

2000-7000 Nm

1500-5000 ft. lbs.

6.7

6.7

RAD 80DX-M

RAD 60DX

2700-8000 Nm

2000-6000 ft. lbs.

6.6

6.6

RAD 110DX-M

RAD 80DX

3400-11000 Nm

2500-8000 ft. lbs.

4

4

RAD 150DX-M

RAD 110DX

5500-15000 Nm

4000-11000 ft. lbs.

3

3

*Also available in a 1.5″ square drive.

Ergonomics

The comfortable pistol grip design reduces cycle time and operator fatigue.

Productivity

Quickly set your torque and start tightening bolts immediately.

Reliability

RAD pneumatic tools are the most reliable on the market, minimizing downtime.

HOW TO USE: RAD Single Speed

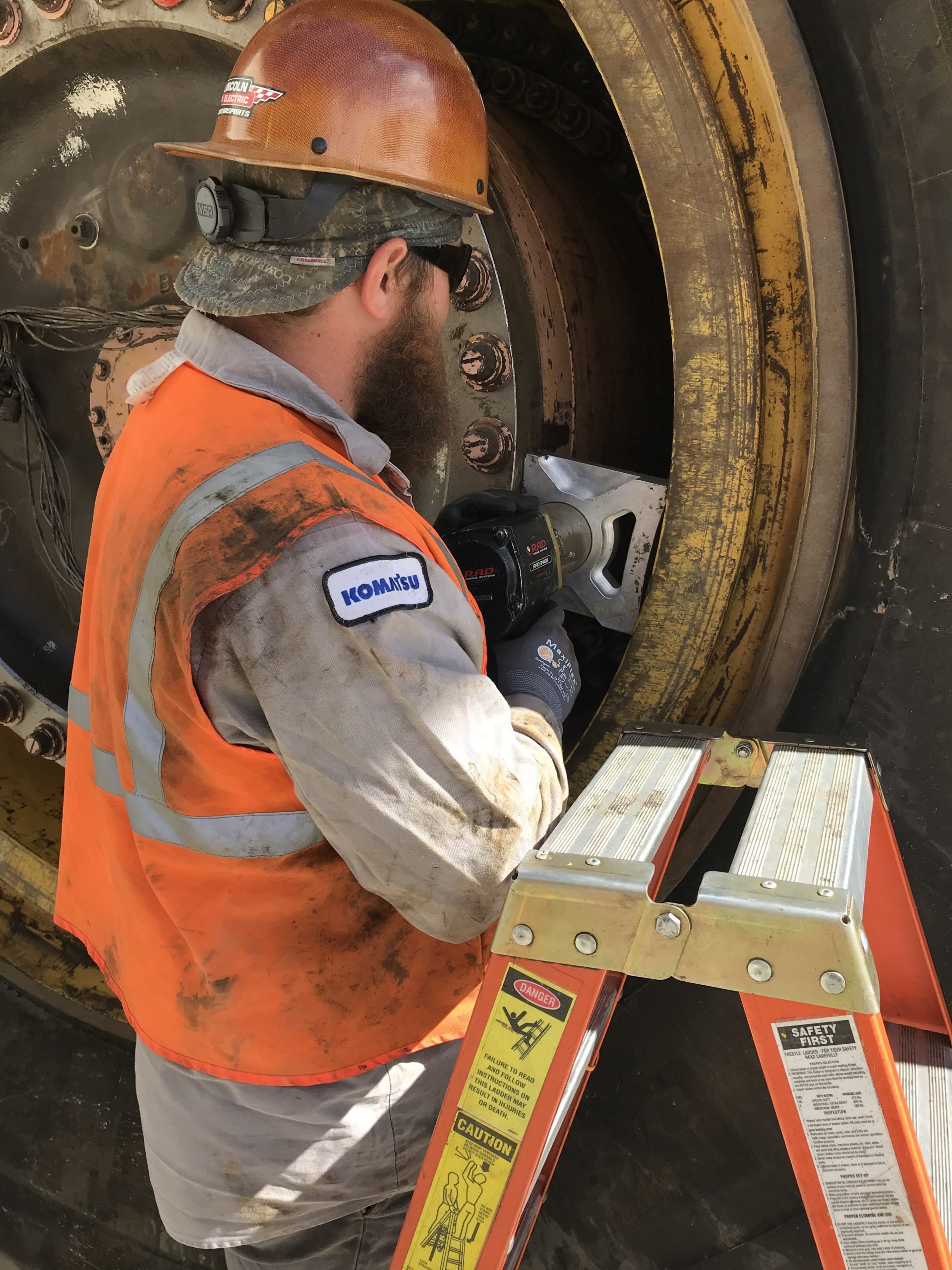

In Action

RAD Single Speed

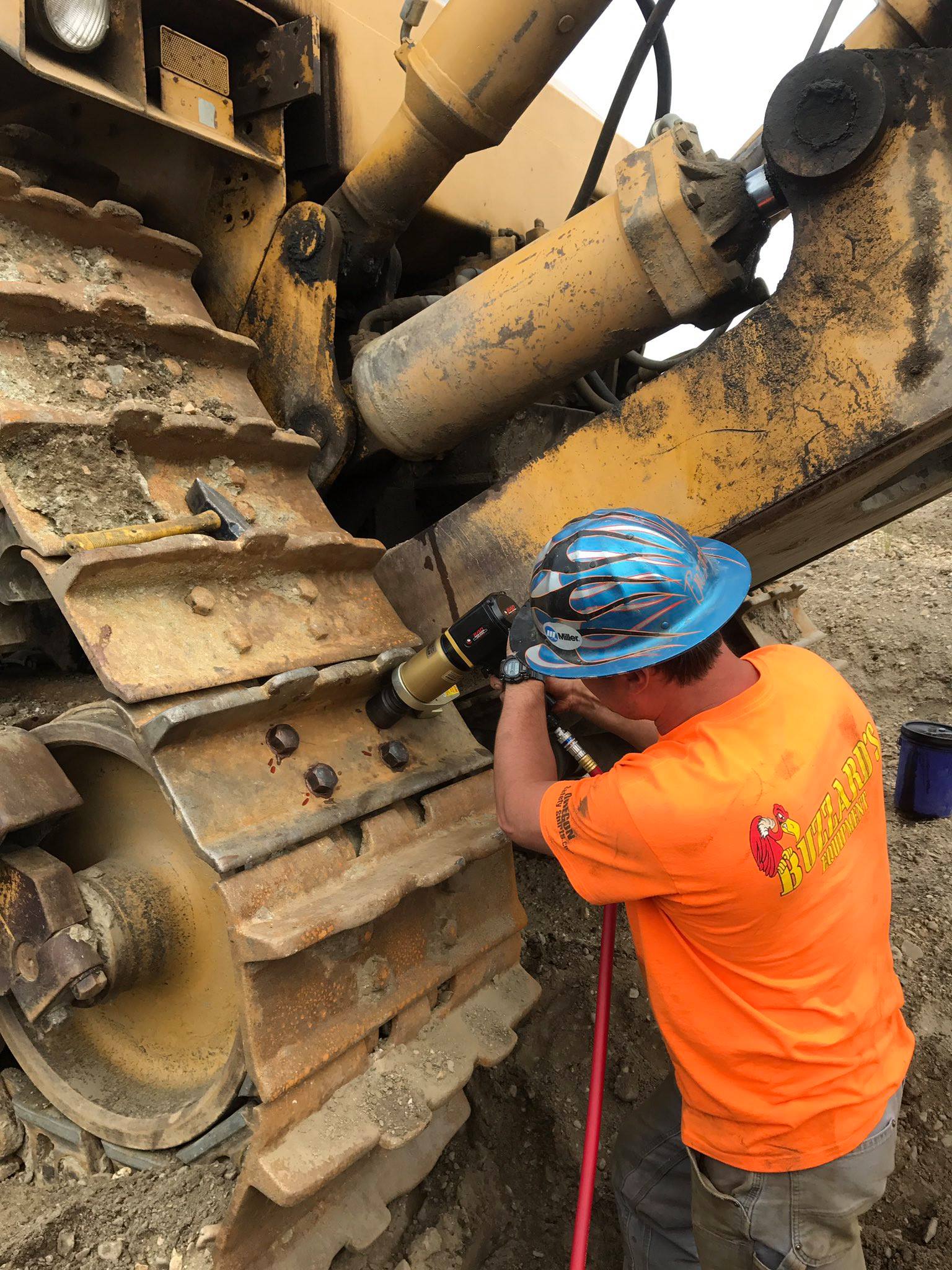

Gold Rush Mitch using a RAD pneumatic torque wrench on mining equipment

In Action

RAD Single Speed

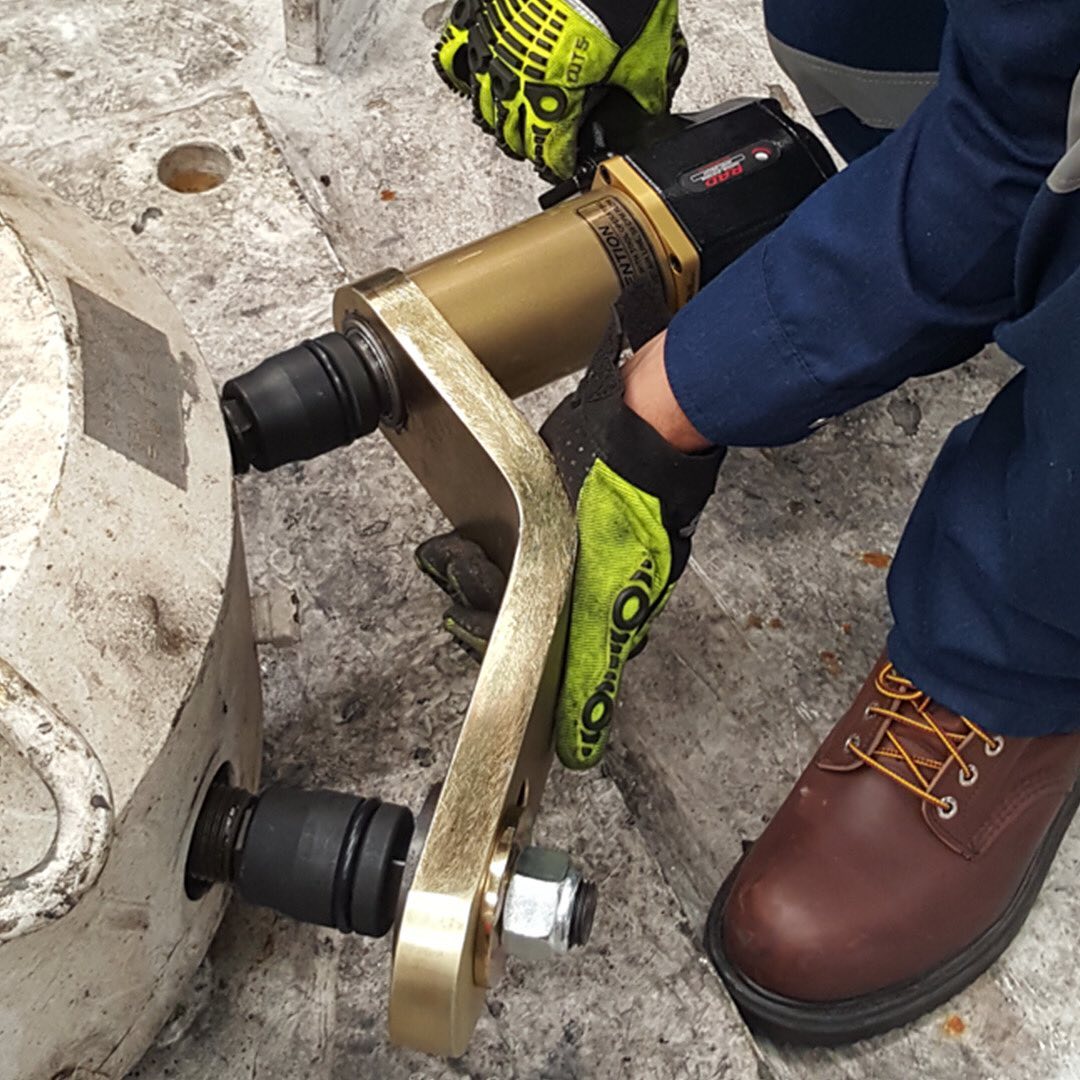

In Action

RAD Single Speed

YOUR HEAVY-DUTY APPLICATIONS DEMAND THE RIGHT GEAR

Discover the best RAD tools to boost your productivity.
