RAD Calibration Systems

RAD Calibration Systems

RAD Calibration Systems Features:

  • Five models available
  • Individually calibrated and traceable to NIST standards to ensure joint integrity
  • Verifies that wrench is operating at maximum efficiency and safety levels
  • Ensures torque wrench accuracy

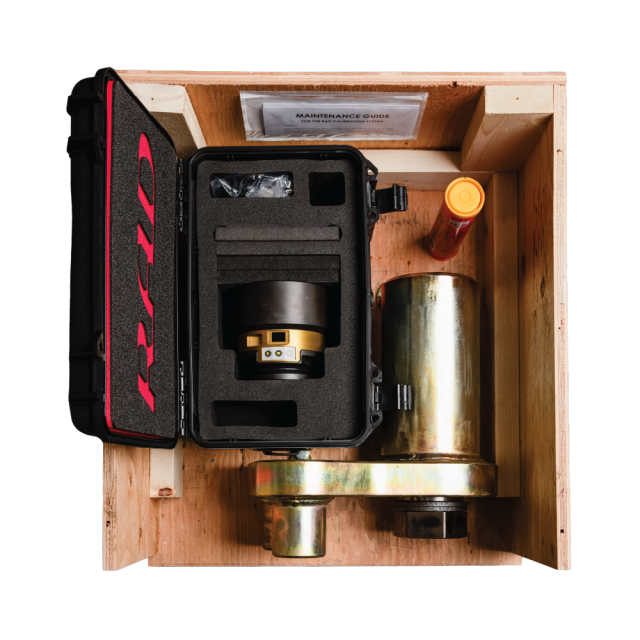

  • Set consists of bench, simulation joint, transducer, digital readout unit, washers, socket, and calibration certificate

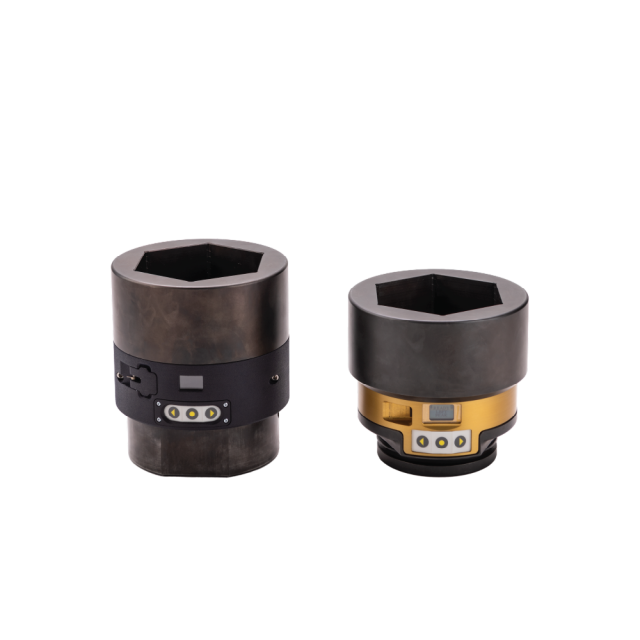

  • Learn more about our Smart Sockets™ HERE

Torque Range: 75 – 18,000 ft. lbs. (100 - 24,500 Nm)

Torque Wrench Calibration System – High Accuracy + Repeatability and Convenient Reading

With five models available and more to come soon, the RAD Calibration System includes a static transducer, calibration stand, and a surface tablet complete with RAD Calibration Software. All for the most accurate torque wrench calibration.

RAD Calibration Systems are classified to BS 7882:2008 as Class 1 or better for the primary range (+/- 0.5% of reading from 20% to 100% of full scale). Each system comes fully calibrated and traceable to ISO 17025 standard ensuring the highest measurement of quality.

  • Ranges up to 75 – 18,000 ft. lbs. (100 – 24,500 Nm)
  • Quick connect from your computer or surface tablet
  • Backward compatible and will suit previous generation RAD calibration benches

RAD CALIBRATION SYSTEMS MODEL CHART

Select Your Preferred Unit of Measurement for the Model Chart

Tool ModelTorque RangeRPM

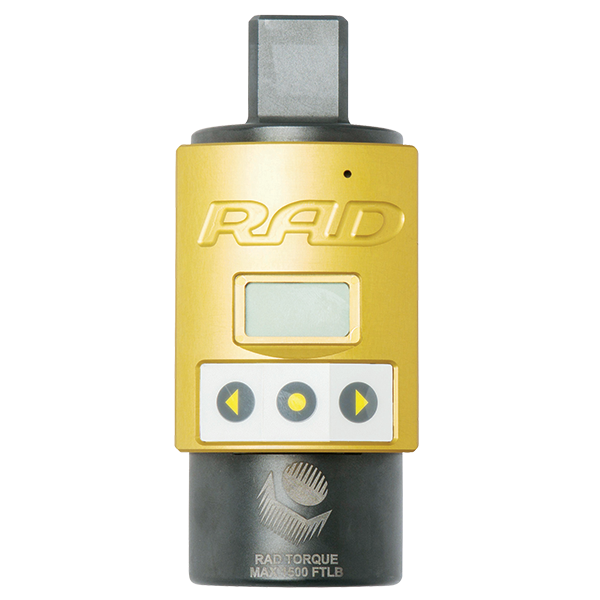

RAD CALIBRATION SYSTEM 1500

RAD CALIBRATION SYSTEM 1500

100-2000 Nm

75-1500 ft/lbs.

-

-

RAD CALIBRATION SYSTEM 3500

RAD CALIBRATION SYSTEM 3500

250-4750 Nm

175-3500 ft/lbs.

-

-

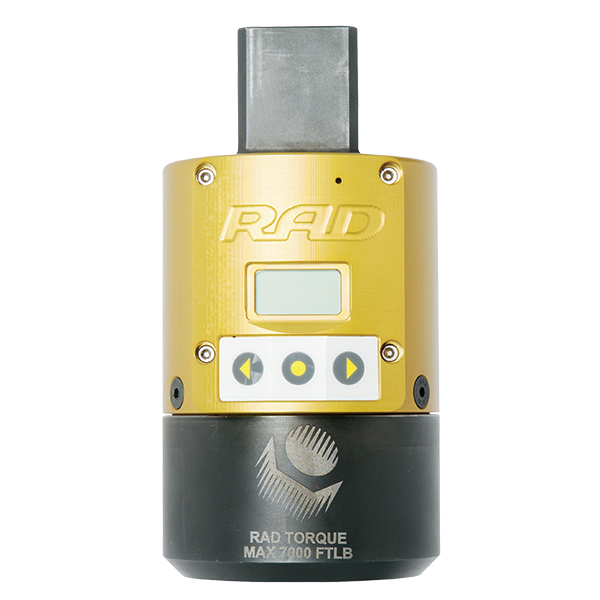

RAD CALIBRATION SYSTEM 7000

RAD CALIBRATION SYSTEM 7000

475-9500 Nm

350-7000 ft/lbs.

-

-

RAD CALIBRATION SYSTEM 12K

RAD CALIBRATION SYSTEM 12K

800-16000 Nm

600-12000 ft/lbs.

-

-

RAD CALIBRATION SYSTEM 18K

RAD CALIBRATION SYSTEM 18K

1200-24000 Nm

900-18000 ft/lbs.

-

-

Ergonomics

Small and designed with safety in mind, the RAD Calibration Systems will let you easily and comfortably calibrate any tool up to 18,000 ft. lbs.

Productivity

The RAD Calibration System can calibrate and audit RAD tools anywhere, on-the-go, as long as it’s connected to power.

Reliability

Easily verify torque output or calibrate a torque tool using the RAD Calibration System, which includes a rundown fixture, torque transducer, and reaction solution. All you have to do is operate the tool.
