CANADIAN-ENGINEERED PRECISION
CONTROLLED BOLTING FOR CRITICAL NUCLEAR MAINTENANCE
The B-RAD S gives maintenance teams the accuracy, repeatability, and data capture needed for critical bolting applications where documentation and traceability matter.
5%
TORQUE ACCURACY
2%
REPEATABILITY
ISO 17025
CALIBRATION CERTIFICATE
CANADIAN
TECHNOLOGY
THE CHALLENGE
The Torque Matters. So Does The Record.
Nuclear maintenance teams are expected to complete critical bolting work to spec — and prove it after the job is done. The B-RAD S supports both sides of the process with accurate torque, repeatable performance, and exportable tightening data for documentation and review.
✔ Controlled torque for critical maintenance work
✔ Exportable records for audits and certification
✔ "Prove" mode to verify work without over-torquing
THE BOLT IS HALF THE JOB. THE RECORD IS THE OTHER HALF.
PRECISION AND PROOF, IN ONE TOOL
CERTIFIABLE PRECISION
±5% accuracy and ±2% repeatability with an integrated transducer reading torque in real time — no separate measuring step.
TRACEABILITY
BUILT IN
Bluetooth® logging records each tightening, giving you a complete, exportable evidence file for audits.
AUDIT WITHOUT OVER-TORQUING
"Prove" mode re-checks already-tightened bolts safely — verify previous work without risking damage.
AT A GLANCE
B-RAD S: KEY SPECIFICATIONS
| Torque Range | 70 – 7,000 Nm (50 – 5,000 ft. lbs.) |
| Accuracy | ±5% |
| Repeatability | ±2% |

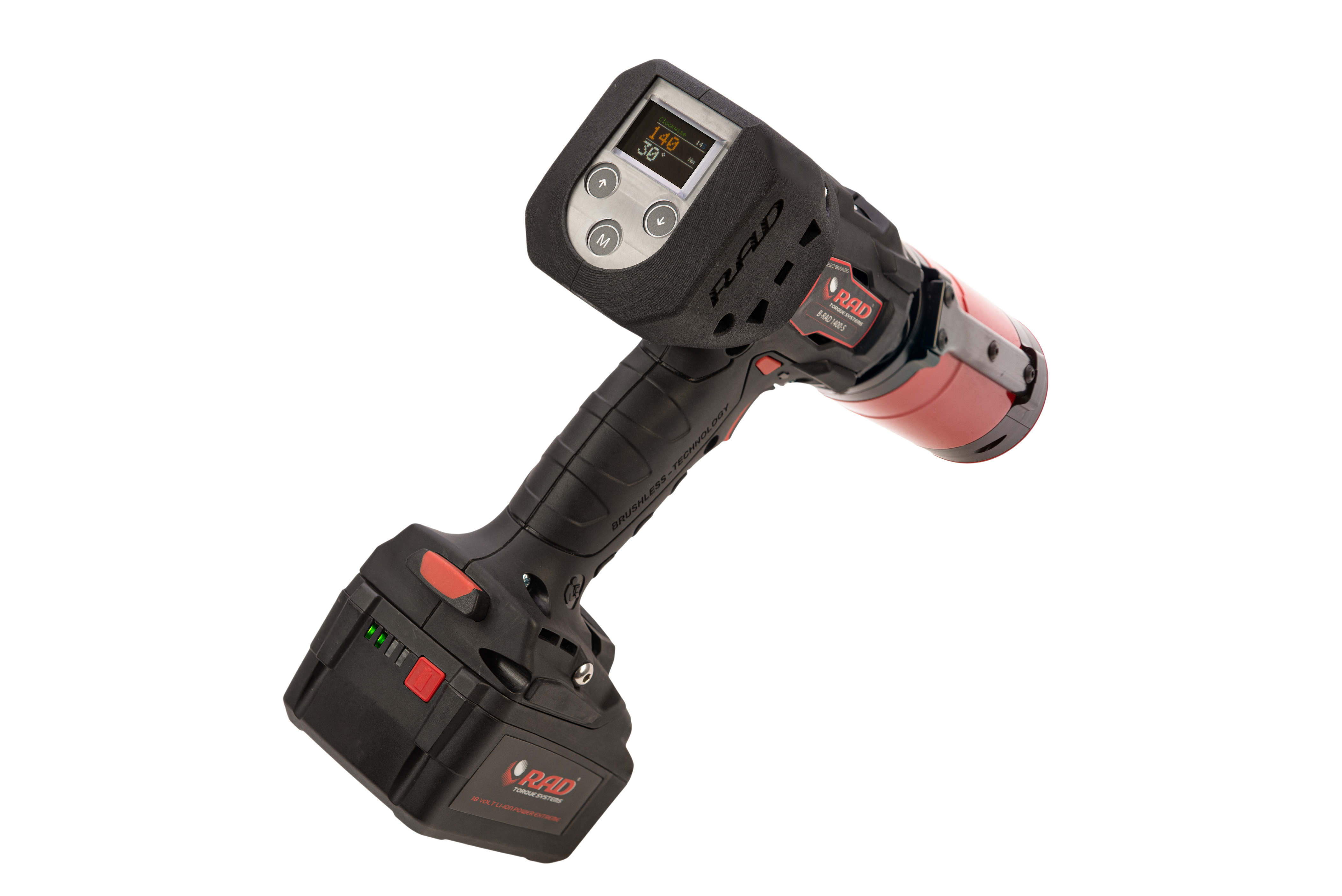

| Platform | Simple screen or digital display |
| Advanced Features | Built-in transducer for real-time torque measurements, torque & angle, torque check function, Bluetooth® connectivity, and automatic reaction arm release |
| Included | Reaction arm, two lithium-ion batteries, charger, retaining ring, storage case, operations manual, and calibration certificate with ISO 17025 accreditation |
